aw 11600-2 replacement

A quick learner from clinton nj says:
I've got to replace a few counter balances. I saw a posting stating that the 419,425,431 would work.
Got those, installed a pair, but no dice. They are too weak to support the window. Do you know the pull strength of the various models or can otherwise direct me towards another model?
Thx
Profile picture of Mike
Mike from SWISCO responded:
It appears you're referring to the 24-431 Andersen Sash Balance.

In order to determine the correct replacement, please take a few photos of your current balance and upload them so we can take a look. Please report to us any and all markings found on the balance.
A quick learner from Clinton NJ says:

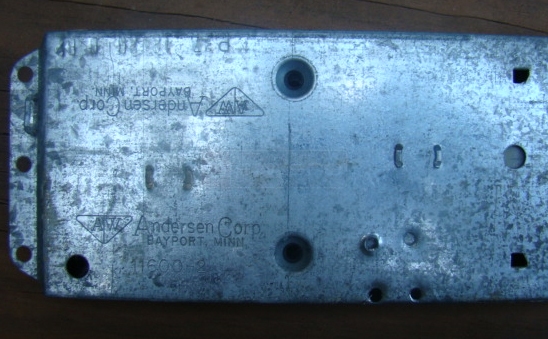

Markings. On the side where the stops pull..
11600-2. same side other edge, P37 12 26 8 82
turned over...1600-3 US patent # 3,335,455
pat 1967 CAN.
I had purchased 24-431...too weak
window dims(unknown model).
39.5"w x 39.5"h(way too weak)
39.5"w x 27"h (a couple lbs weak)
thx
User submitted photo of Andersen window crank.
Profile picture of Mike
Mike from SWISCO responded:
We believe the 24-1231 Andersen Balance may be what you're looking for.
A quick learner from Clinton NJ says:
ok, i'll try it. you didn't answer the question though. what make 24-1231 the right choice.?
Profile picture of Donna
Donna from SWISCO responded:
The given numbers 12 26 may be the identifier we needed. The 12 would represent the strength and the 26 could indicate the cord length thus making the 24-1231 a good replacement. The newer model balance boxes are a little easier to identify.
A home owner from pittsburgh says:
I have to change a sash balance for some windows (10 windows),one of them have this number F412 31
Profile picture of Mike
Mike from SWISCO responded:
Please take a look at our 24-1231 Andersen Sash Balances and see how it compares to your own.
