balance locks

A handy person from Lake St. Louis, MO says:
Hello,

I am looking to replace the pictured items. It appears to be your part # 15-195, but if you can determine the manufacture of the window from this part, it would be appreciated.

I am also looking for sash locks for the same model windows. I will send pics, once I have them.


Please advise.

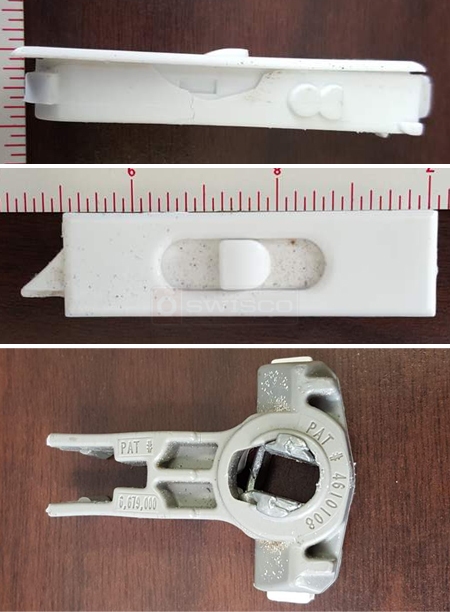

User submitted photo of their window hardware.
Profile picture of Paul
Paul from SWISCO responded:
Yes, that shoe looks like our 15-195. I'm afraid I cannot confirm what manufacturer you have based on that alone, though. Many, many manufacturers have used this shoe and the balance related to it, the Series 795 channel balance.

I'm also not sure about the tilt latches. They are very unique. I wonder if you could use something like our 26-243 and 26-244. My only concern is that the "tooth" might be too thick.
