ballancing channel [ i think]

A home owner from 91709 says:
i am not sure what these things are called ,these keep the window in balance,one is 55 cm long has marking on it as follow;...[21 4 c? Caldwell] [? means scratched letter or number]

the longer one has the marking [33 5 LS Caldwell]and is 33.5 inch long

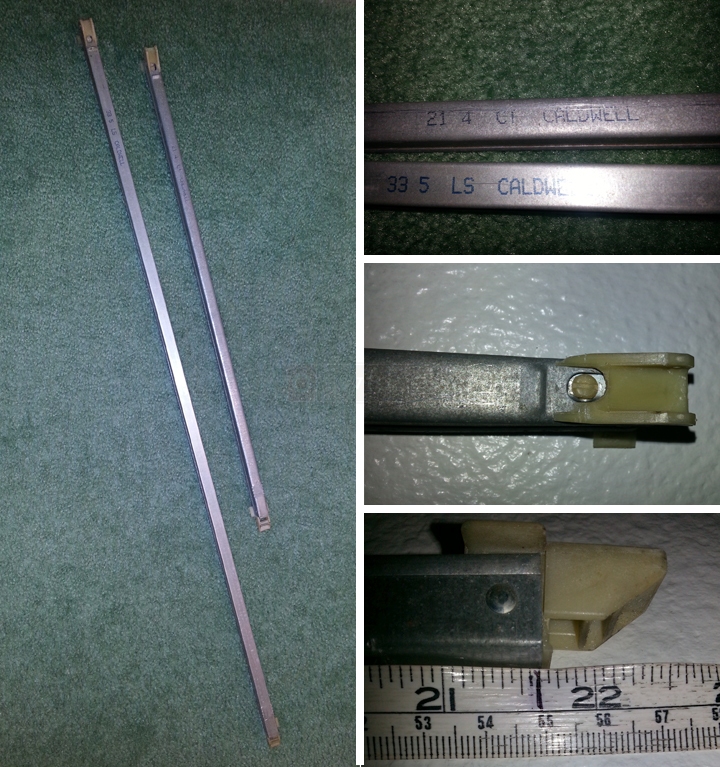

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
Hey, thanks for posting. You were close! These are known as channel balances. I've actually narrowed down what you have to two possible channel balance Series: either our Series 380 or our Series 385 balances.

Now, as you can see, there is only one difference between these two Series, and that is their bottom shoe. The Series 380 uses the 15-005 while the Series 385 uses the 15-004. I can't quite tell what you have based on your pictures, though. Please carefully compare their dimensions to your own hardware and see which is a better match.
15-004 and 15-005


I also recommend that you double check the lengths. Make sure you're only measuring the metal channel! The balance stamped with 21 4 should be 22" long, while the balance stamped with 33 5 should be 34" long.
A home owner from 91709 says:
checked the length, i am sticking by my previous measurements [LOL] as for as the bottom shoe go the top one [15-005] is more likely to match.
Now checked the length [with another ruler] for the last time and gosh darn it it is 22" /34" silly me.now how can i place the order?are these easy to install?
Profile picture of Tom
Tom from SWISCO responded:
Great! Like I said above, if you have the 15-005 shoe then I think our Series 380 is the best place to start. You can place your order directly online.

These balances are very easy to install. Check out our handy video tutorial to see how you can do it.
A home owner from 91709 says:
hi Tom, i ordered series 380 balance channel they fit perfectly now the plastic thing that attached to the window is broken ,now what is this thingy called

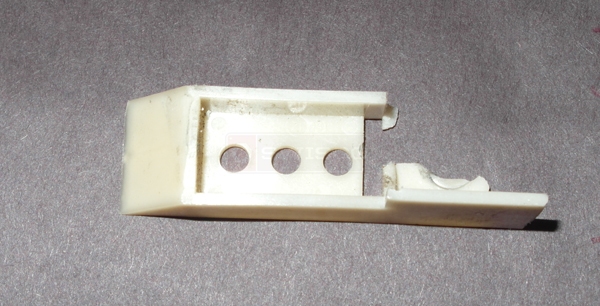

User submitted a photo of a top sash guide.
Profile picture of Tom
Tom from SWISCO responded:
These are known as top sash guides. Now, I can't tell exactly what yours is as it is damaged, but it closely resembles our 18-008. Carefully compare this product to your own hardware and see how they match up.
