boken handle multipoint lock

A quick learner says:
I'm looking for a multipoint casement window lock. Found your website with what looks like what I'm looking for. Mine measures 4 5/8 long, 3/4" wide. Appears to be 5/16 wide where it inserts into the window. The holes are 3 13/16 center tot center. The fork is a little over 1 5/8 long where it sticks out of the lock. I will need two. One for each side left and right. I've sent some pics to show what I have. Any help would be appreciated. Thanks Ron

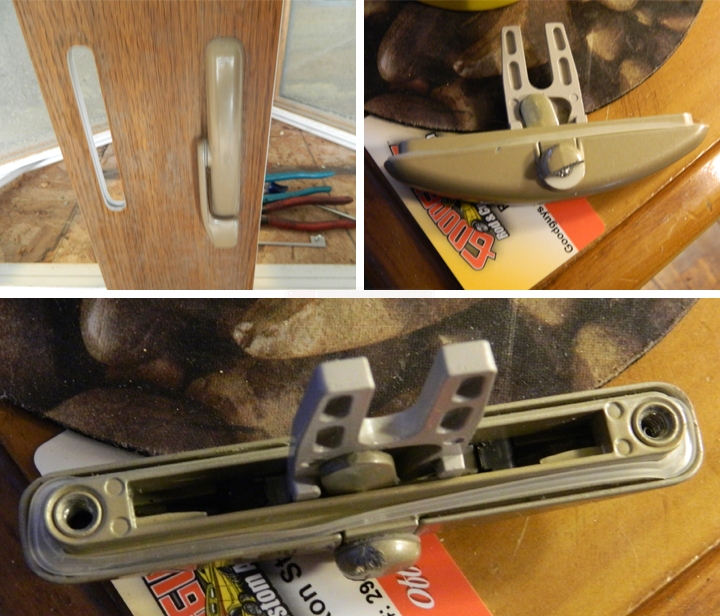

User submitted photos of window latches.
A home owner from USA says:
I'm looking for a multipoint casement window lock. Found your website with what looks like what I'm looking for. Mine measures 4 5/8 long, 3/4" wide. Appears to be 5/16 wide where it inserts into the window. The holes are 3 13/16 center tot center. The fork is a little over 1 5/8 long. I will need two. One for each side left and right. I've sent some pics to show what I have. Any help would be appreciated.
Profile picture of Tom
Tom from SWISCO responded:
This appears similar to our 38-139. Check it out and let me know if you agree.
A home owner from Charlottesville Indiana says:
Yes it does look the same. I'm concerned about the bolt pattern (distance center to center). Mine are 3 13/16. Do you have these in the gold color. I also need the crank handles. Do you have the measurements or the specs on the 38-139. Thanks Ron
Profile picture of Tom
Tom from SWISCO responded:
Yes, check out our dimensions in the image below. We do not currently have it in gold, but I would be happy to look into it for you!
Alternate view of 38-139
A home owner from USA says:
The 1 1/2 and the 5/16 are good. My opening where this goes into is 3 1/4 x a tight 7/16. The main thing I'm worried about is the mounting hole distance. Unless you have the bracket for the back that holds it in place. M holes measures 313/16 center to center. Thank Ron
Profile picture of Tom
Tom from SWISCO responded:
Thank you for your patience in this matter. I'm afraid this is not available in gold, or any alternate colors. However, the hole spacing is 3-7/8", which is very close to your 3-13/16".
