bottom U shape window guide - plastic track piece

A home owner from Owingsville KY says:
October 31, 2015
Need help keeping my window up. Attached is a photo of busted piece. Believe it is American Standard, 34 1/4 x 61 1/2. Will need multiple right and left u shape plastic pieces that fit in this track. Will also need bubble seal. Total of 7 windows at 34 1/4 x 61 1/2 and 2 at 35 1/4 x 35 1/2

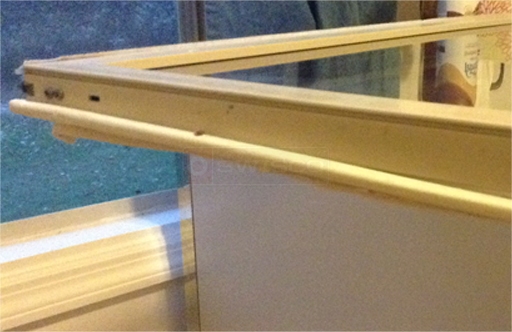

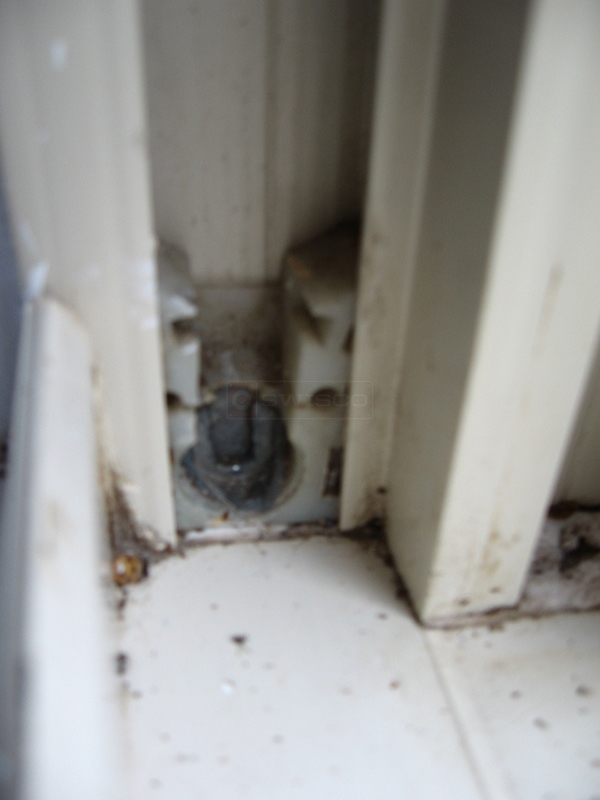

User submitted a photo of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
November 2, 2015
Take a look at our 15-175 shoe and Series 152 coil spring. I believe these will match your existing balance system. I will need to see a profile angle photo of your bubble seal in order to identify it.
A home owner from Owingsville KY says:
November 9, 2015
this is the seal that I need. 34 1/4 long

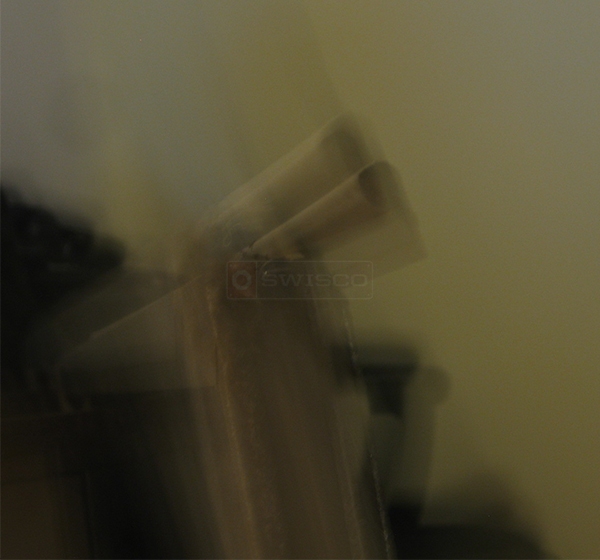

User submitted photo of their weatherseal.
Profile picture of Paul
Paul from SWISCO responded:
November 10, 2015
I'm sorry, but I'm not able to identify your seal based on this picture. We need to see an angle that clearly shows the profile, or cross-section. See the video below for more help.
A quick learner from kentucky says:
November 26, 2015
Bubble seal. Sorry having trouble getting a clear picture. The bubble part is 1/4 inch and the stem is 1/2 inch
User submitted a photo of weatherstripping.
Profile picture of Tom
Tom from SWISCO responded:
November 30, 2015
I'm sorry, but your picture is very unclear, though it is the right angle. Can you take a clearer picture at the same angle?
A quick learner from Owingsville says:
December 2, 2015
here are better pics of bubble seal

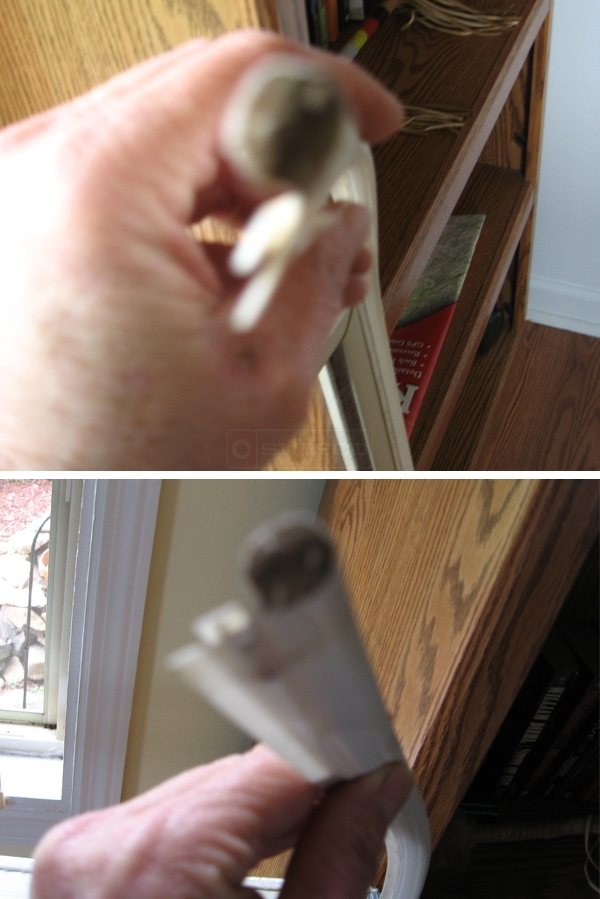

User submitted photos of weather seal.
Profile picture of Paul
Paul from SWISCO responded:
December 3, 2015
Thank you. It looks like you might have a match for our 58-183. Let me know if you agree. Make sure that the dimensions are the same.
.187 T-Slot Offset Hollow Foam Seal,12ft
.187 T-Slot Offset Hollow Foam Seal,12ft
58-183
$16.70
