caldwell balancer

A handy person from salt lake city, utah says:
Hello- i need 2 of these window balances. Came off a viking single hung vinyl window. Sash approx 36 tall by 36 wide

the metal part measures 33" i can barely read the printing but it seems to say "32 4 ER Caldwell"

please let me know if you have these. thanks

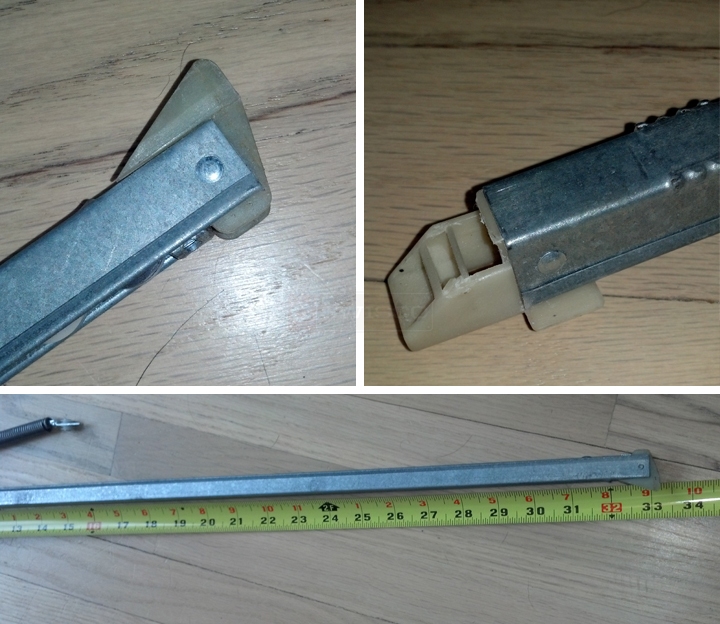

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting! I have to figure out what your bottom shoe is. Please look at the measurements for our 15-001 and 15-002 bottom shoes and note their depths. As you can see, they are 1-1/8" deep and 1" deep, respectively.
Comparison of 15-001 & 15-002
Which measurement more closely resembles your own shoe?
A handy person from salt lake city, utah says:
thanks, to answer your question above, the depth on mine is definitely closer to 1-1/8"

thanks
Profile picture of Tom
Tom from SWISCO responded:
Great! The balance series you need is our Series 395. Take a look specifically at S395-33 with the option 3240. This should be a perfect replacement for your old window balance. Let me know if you have any further questions.
