carefree window replacement parts.

A handy person from Rapid City SD says:
I found a post on your web site about replacement spiral balances for tilt windows that would work on Carefree windows. I ordered two 900-27 spiral balances. My bad they should have been 900-26. the end that fits in the pivot lock shoe does not fit in the shoe in my windows the two nubs as I call them are an 1/8 inch tow far apart to let the balance hook into the shoe. do you have an solution for this.
Profile picture of Paul
Paul from SWISCO responded:
Hmmm... I have come across a similar issue before. What I did was use a pair of pliers to carefully and slightly bend the prong up. That allowed the tilt pins to lock under. Would this work for you?
A handy person from Lewiston maine says:
Looking for twenty of these
Thanks for your help

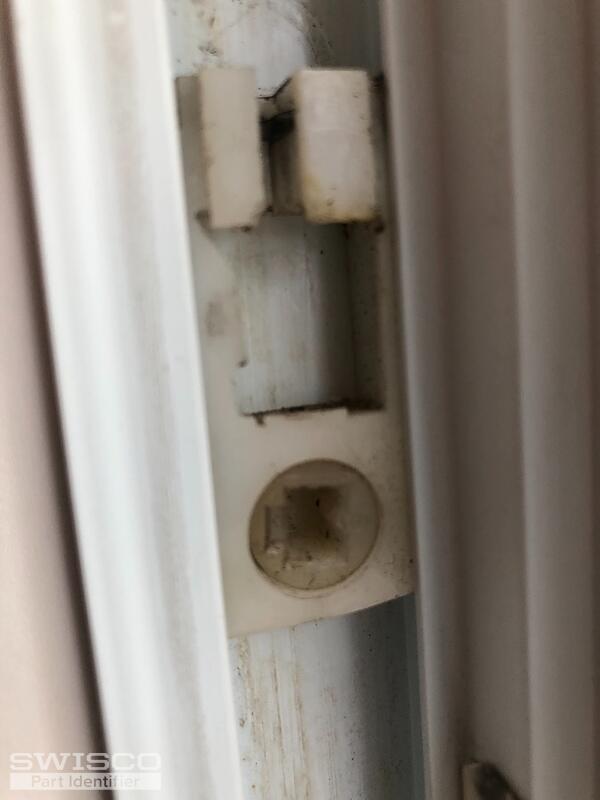

Thumbnail of the uploaded file named AB635151-414B-400B-B2DC-FE30628B6D78.jpeg

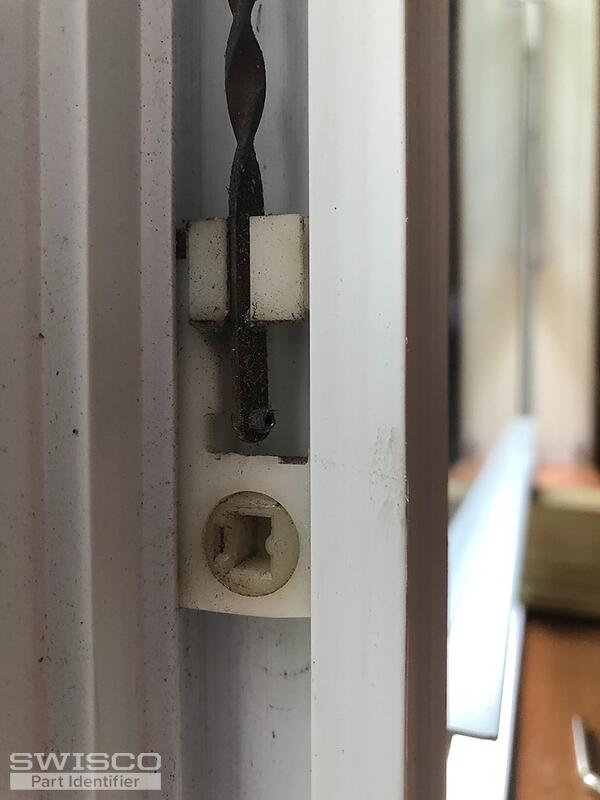

Thumbnail of the uploaded file named EBFAF9E7-61AF-4B62-974A-AF89C50189D7.jpeg
A handy person from Lewiston maine says:
Forgot to mention the manufacture of the window is care free
Thanks
Profile picture of Paul
Paul from SWISCO responded:

Care Free window company uses a variety of pivot shoes. Yours looks to be our 15-045, which is 1" wide by 3/8" thick with a 1/4" X 3/16" cam opening for the pivot bar. You'll have to remove your hardware from the window to compare our dimensions to yours and see if this matches what you need.
