casement window crank

A home owner from Burbank CA says:
December 2, 2015
Need a left and right replacement for this window, I also need the slide that attaches to the window

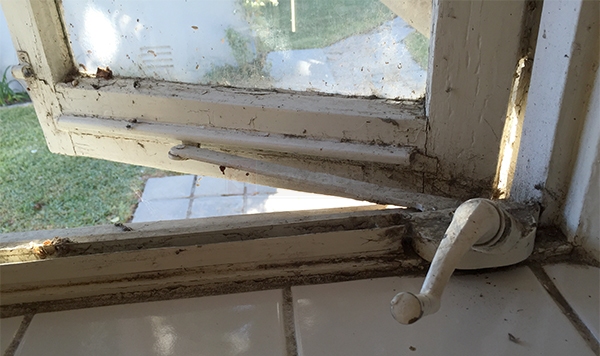

User submitted a photo of a window operator.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
December 3, 2015
The operator I see in your photo looks like an old version of the 39-268. However the 39-268 crank handle comes straight out, while your crank handle is angled upward. We also carry another type that may be worth considering. See our 39-020 operator, though I'm not sure if you can adapt it to your window. You might need to make up a new sill cover to accommodate the 39-520 track. The 39-268 I believe would be the best replacement, but take a look and see what you think.
A home owner from Burbank CA says:
December 3, 2015
Dave- it looks like the 39-268 would work, however, do you sell the part that attaches to the window that the hinge slides on?
Profile picture of Paul
Paul from SWISCO responded:
December 4, 2015
If you look at the 39-268 arm. you will see an attachment with two screw holes. The bracket has a nylon wheel, so as you crank the handle, the arm slides over the nylon wheel. That bracket takes the place of the track. Does that make sense? Let me know if you'd like any clarification.
Wood Casement Window Operator
Wood Casement Window Operator
39-268
$25.12
Wood Window Crank, 9"
Wood Window Crank, 9"
39-020
$33.50
13-1/2" Operator Track
13-1/2" Operator Track
39-520
$10.45
