casement window operator on an entrance door

A quick learner from phila. pa says:

February 13, 2014

I have to reproduce a 1 3/4" thick door that has an operating casement window in top section of the door.I am trying to find an operator for the casement window and I believe you may be able to help me. I have pictures of the old door and drawings of the replacement door I want to make. I have already told the person I can make this but cant seem to find the proper hardware. PLEASE HELP! the problem is the door is 1 3/4" thick and the sash is 1" thick because we also have to put a screen on the inside of the sash. The crank has to be narrow in depth also as not to protrude to far past the face of the door on the inside of the house. Like I said I have pictures and drawings that I can send you. THANK YOU Bill

Paul from SWISCO responded:

February 14, 2014

Thanks for posting, Bill. Could I see a few pictures of the window itself? That will help give us a better idea of what it is we're working with. Thank you!

A quick learner from Phila, PA says:

March 21, 2014

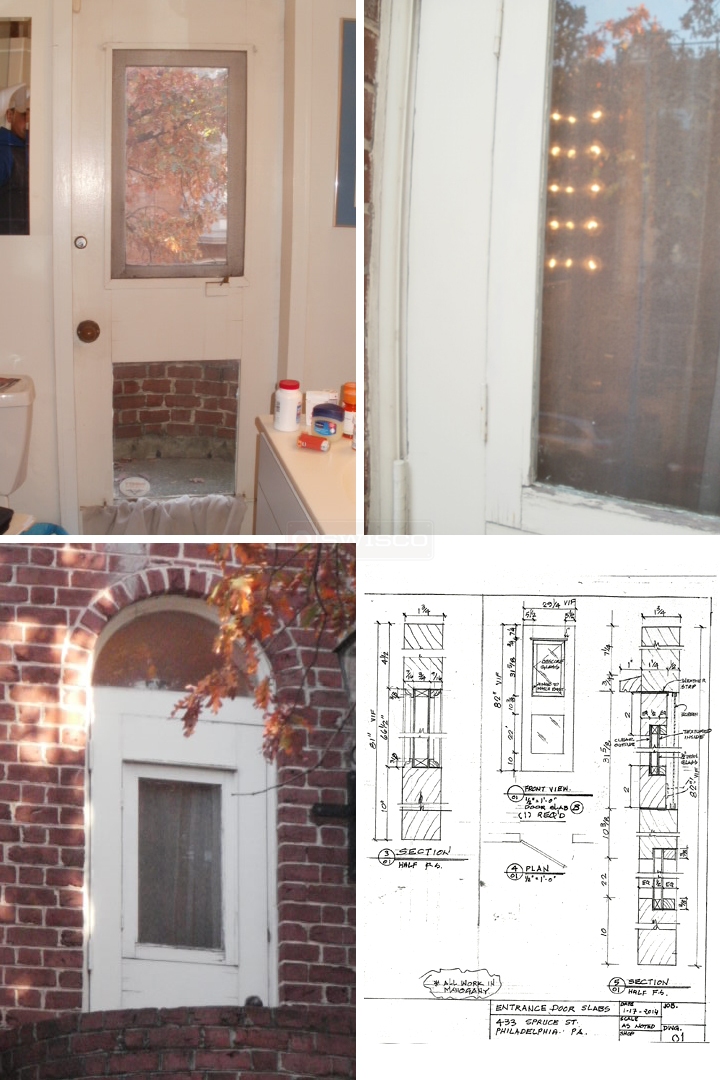

Enclosed is a drawing of a door we have to make with an operable casement sash opening with a crank. I was speaking to a gentlemen who asked me to forward this drawing and he will try to help me out. The sash only has to open 3" or so to vent steam from a bathroom. However, the handle can not be what is drawn. It has to be a handle similar to 39-108 white. I also enclosed picture of original door. Thank you. Bill Kane

Dave Sr. from SWISCO responded:

March 25, 2014

This is tricky. On a regular wood casement window, I would use the 39-020 operator with the 39-520 track. You could use a simple casement lock like our 90-152, but if you're also installing a screen it would have to be removed when you unlock the window. Same for the 39-077.

Wood Window Crank, 9"

39-020

$33.50

13-1/2" Operator Track

39-520

$10.45

Casement Window Adjuster, Solid Brass

39-077

$39.97
