31.5" long channel balance

A quick learner from san diego says:
Hi,

I need one balance replacement as the cord is torn, looking at your website the closest one i think is the series 385 or 380, please compare to photo
http://www.swisco.com/cl/Series-385-Channel-Balances.

the length is also unclear as I measured 31.5" and you have 31 or 32.

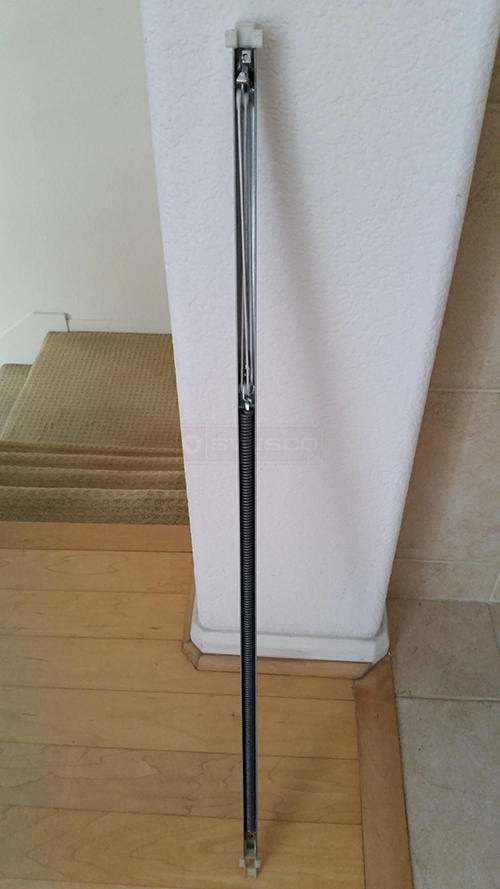

User submitted a photo of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
I agree, this could be either our Series 385 or Series 380 channel balance. I cannot confirm which is closer, though. The only way to know is to carefully compare the size of the nylon attachments to yours. Which is closer?

As for length, make sure you're only measuring the metal channel. Do not include the nylon attachments in your length measurement.
A quick learner from san diego says:
Thank you, will measure the length again. I have attached a new picture of the bottom nylon - looking at the number of angles it appears closer to 15-004 in 385 than 15-005 in 380 which is more squarish.
agree?

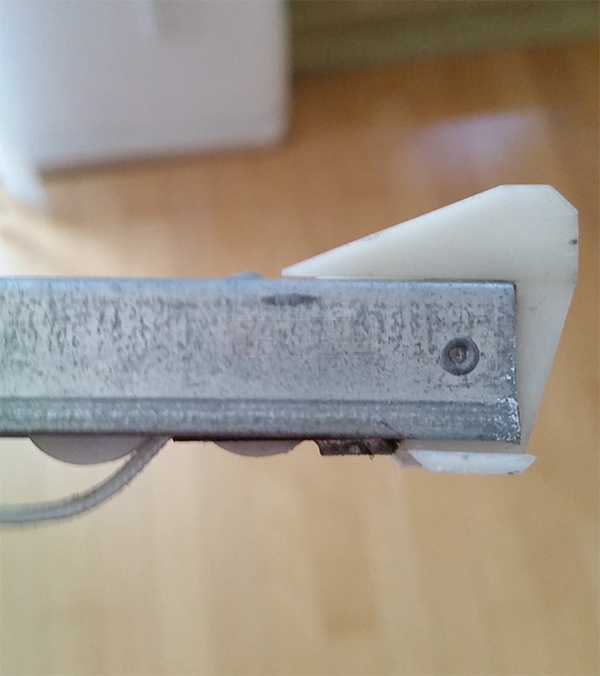

User submitted a photo of a window balance.
A quick learner from san diego says:
measured length - exactly 31.75"
Profile picture of Paul
Paul from SWISCO responded:
Thank you. Don't worry about the shape so much, just focus on the size of the bottom shoe. If the 15-004 is a closer match in terms of dimensions, then the Series 385 is definitely the way to go. As for the length, it's a little harder to say. I don't know anyone who makes a balance channel in that size. Our S385-32 may work.
A quick learner from san diego says:
thank you. One last question - stamp option for the weight - which one? i see the following on the balance 31 6 AX CMC1
Profile picture of Paul
Paul from SWISCO responded:
Sure, with a stamp of 31 6 I recommend our 3160 option. You may want to weigh your sash to confirm, though. Two balances with the 3160 option can hold a window sash weight of 32 through 35 pounds.
A quick learner from san diego says:
i did buy two of the 3160 option with length 32". unfortunately when I tried to install it I found out it doesn't fit because it doesn't slide all the way to fit in, the cord is too short. I attached a photo comparing the two new parts relative to what I have - it's a different design in terms of the spring length and cord length. any idea what I should buy? maybe 31"?

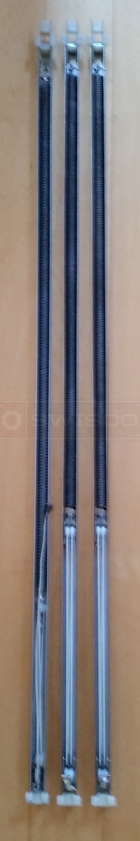

User submitted photo of their window balance.
Profile picture of Paul
Paul from SWISCO responded:
I'm not sure what you mean when you say it doesn't slide all the way to fit in. When you installed the balance in your window and tried closing the sash, did the sash travel all the way down to the sill? Or did it stop short of the sill? That's the only consequence I can think of for a string that is too short. Even then, our balances have replaced other balances like yours with no problem, regardless of string and spring size. Are you sure that's the issue?
