channel balance for regency window printed with p A2740

A quick learner from Anaheim Hills, CA says:
trying to identify this channel balance for a non tilt sash window.

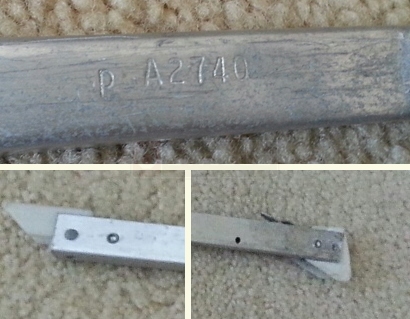

User submitted picture of channel balance A2740.
Profile picture of Tom
Tom from SWISCO responded:
Hey, thanks for posting. I've narrowed this down to two possible channel balance Series: either our Series 351 or our Series 390 balances.

Now, as you can see, there is only one difference between these two Series, and that is their bottom shoe. The Series 351 uses the 15-002 while the Series 390 uses the 15-001. I can't quite tell what you have based on your pictures, though. Please carefully compare their dimensions to your own hardware and see which is a better match.
15-001 and 15-002
A quick learner from Anaheim Hills, CA says:
Thank you Tom! I measured and the bottom shoe width is 1 1/16". Any thoughts on if I should order the slighty bigger or slightly smaller one?
Profile picture of Tom
Tom from SWISCO responded:
I think you should go with the 1-1/8" deep 15-001. It's likely that you once had a shoe that size and it simply wore down with time. If not, you can always just sand it down a little yourself. It's easier than trying to pack out the smaller shoe!
