coil balance shoe set and pivot locks

A quick learner from Woodhull,NY says:
my window is not working-like a lot of others...
Here are some pictures hopefully. and the measurements shoe 1/2 deep 1 3/8 tall and 1 1/4 wide coil is 1/2 inch wide coil has a "D" stamped on it.
There is not manufacturer shown on the window.
Profile picture of Tom
Tom from SWISCO responded:
I'm afraid your images did not come through. Can you try one more time? I would be happy to help you fix your window as soon as I get them.
A quick learner from woodhull says:
still having problems with the pictures
Not as quick as I thought

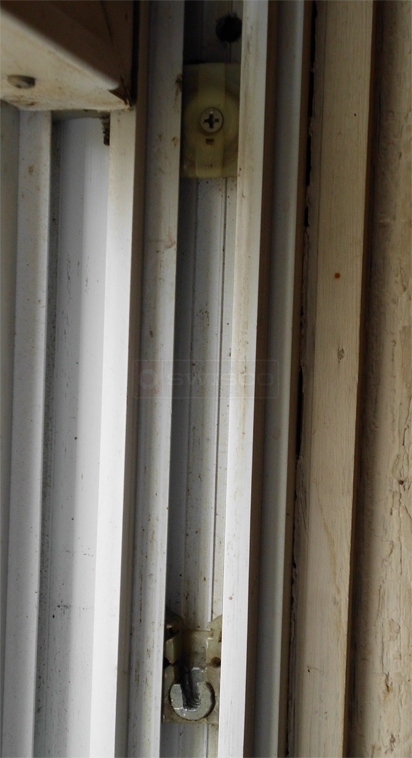

A customer submitted image of their balance.
Profile picture of Paul
Paul from SWISCO responded:
Fortunately, it looks like one image managed to sneak through. This may be enough.

The tilt shoe itself looks like our 15-175. If you agree, you may also want to consider the Series 152 coil spring. Let me know what you think.
A quick learner from woodhull,ny says:
Awesome job. I have placed my order and believe these are the parts I need. Thank you so much.
I will be working on my picture sending abilities also.
