constant force coil balance

A home owner from new city.ny 10956 says:
i need left and right sides , there are no markings or stamps on any of the parts, the shoe is 1 1/4 wide and 1 1/2 height, the coil is 3/4 diameter and 1/2 inch wide. i will need left and right shoes 2 coils.

these are double hung vinyl windows. the window was made and installed by a company called therma-tight from port chester ny no longer in business the window is 30 inch. wide 16 inch. height. i weighed the lower window and it is approx 10 pounds

please let me know if it comes as a kit all one piece, i really do not need the white plastic parts but it comes all together that will be fine

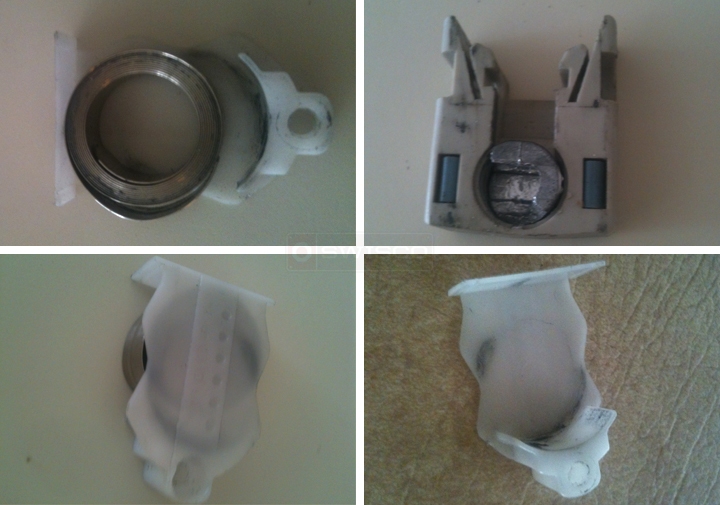

User submitted photos of a window balance.

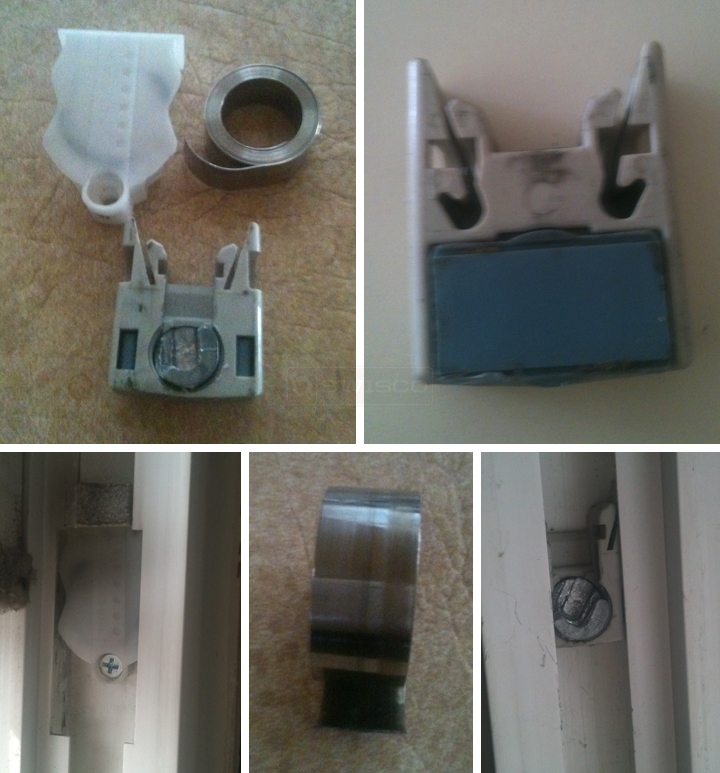

User submitted photos of a coil balance.
Profile picture of Paul
Paul from SWISCO responded:
The shoe looks like our 15-177. Carefully compare it to your shoe and see if you agree. If so, I also recommend our S152-5 coil spring. These two parts are sold separately.
A home owner from new city.ny 10956 says:
thanks gonna order it you guys are great
A home owner from new city.ny 10956 says:
thank you tim appreciate all your help purchased the flat head pan screw , project finished success couldn't do it without you
