double coil balance

A professional from Goldsboro, NC says:
June 16, 2016
Need to replace double coil balances in customer's windows that have no identifying marks or window manufacturer.
white case is 3"
white case w/ black block 3 1/2"
twist lock receiver 1"
channel depth is 9/16"
channel width is 1 1/4"

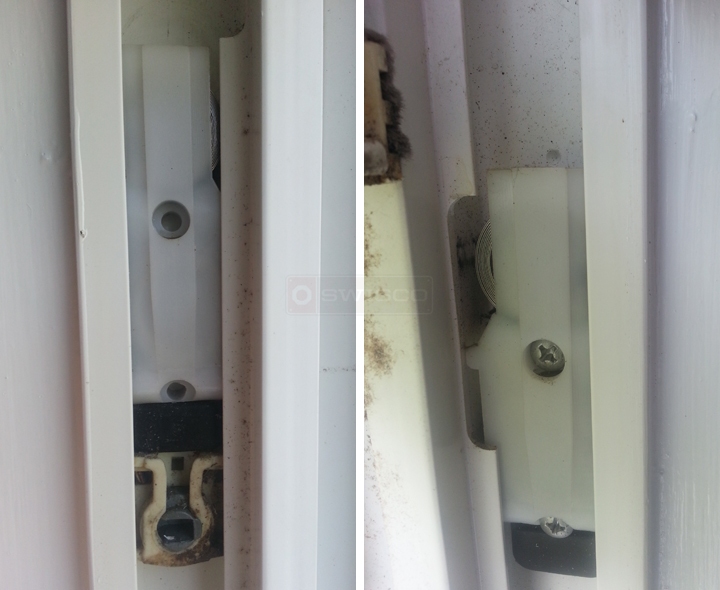

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
June 20, 2016
Hello again! Check out our 15-111 pivot shoe and I believe the Series 160 1/2" wide coil spring. You will need the stamped weight number printed on the spring in order to identify the proper match. Let me know what you think!
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-111
$2.44
3.5 lbs Series 160 Coil Balance
3.5 lbs Series 160 Coil Balance
S160-03
$4.50
