full width on mortise lock? 82-218

A handy person from Pismo Beach, ca. says:
Hi I work at SeaVenture Resort and looking for 17 of these mortises. My question is what is the overall width of the farthest outside measurements of this mortise lock product code #82-218. In the pic it shows 1 1/16" to the mounting bracket. Mine is like 1 1/8" and overall its 1 1/4" wide. The W&F/E2014 are too narrow of a width. Thanks for any help.
Profile picture of Donna
Donna from SWISCO responded:
I grabbed an 82-218 from stock and I found the overall measurement of the depth to be a slightly heavy 1-1/8".

If you would like, send us some pictures of your mortise lock and we can have our experts take a look at what you have and see if they believe 82-218 is the mortise lock you need.
A handy person from Pismo Beach, ca says:

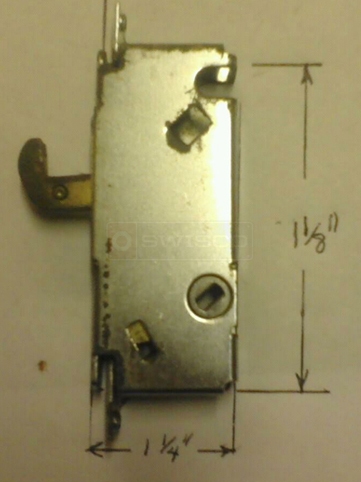

Here is a photo of my mortise lock
User submitted photo of mortise lock.
Profile picture of Donna
Donna from SWISCO responded:
Good Morning,

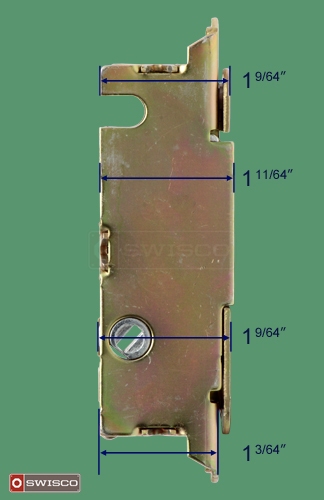

Here is an alternate image of the 82-218 Mortise Lock, showing multiple width measurements:
Alternate image of the Swisco 82-218 showing width measurements.
