glass patio door roller

A home owner from estero fl says:
I would be grateful if you could match the attached pictures of my tandem door rollers
measurements are

length 3 1/8
width 3/4
height 1 7/16
flare width 1 15/16
wheel size 1 7/16
The doors are 10ft high and very heavy

The housings are in excellent condition and i could replace the wheels if necessary,but I see no 1 7/16 wheels in your products.Possibly rhey were 1 1/2 inch and have worn down

regards
ron

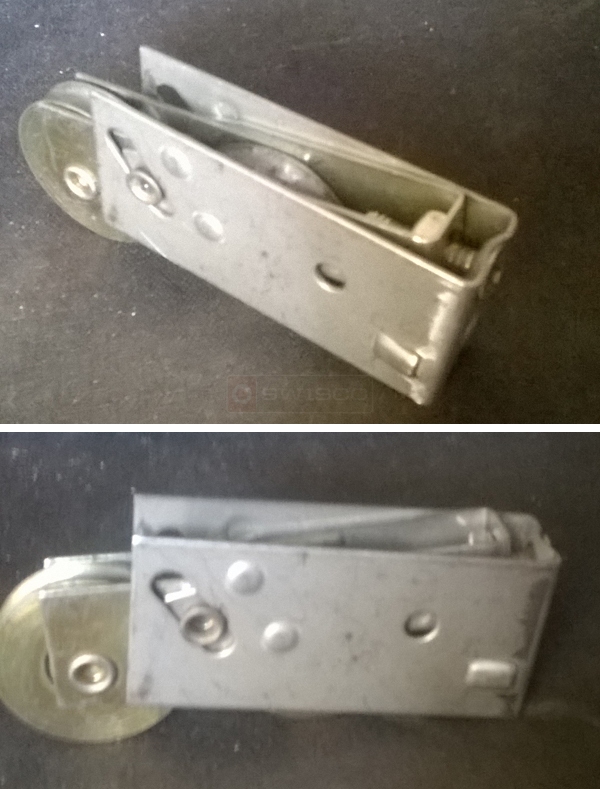

User submitted photos of a patio door roller.
A home owner from estero fl says:
apologies flair width sb 15/16 not 1 15/16.
your product 81-153 seems to be closest that you have.
Profile picture of Paul
Paul from SWISCO responded:
Thanks for posting! I agree, I think our 81-153 can work for you. They have a weight capacity of approximately 225 pounds.
