Help replacing a 35 3 CR CALDWELL balance

A home owner from Bonita Springs FL says:
Please identify replacement balancer:
Metal part: 36" long
depth of bottom part: 1 3/32
Window weight: 25#
Stamp: 35 3 CR CALDWELL

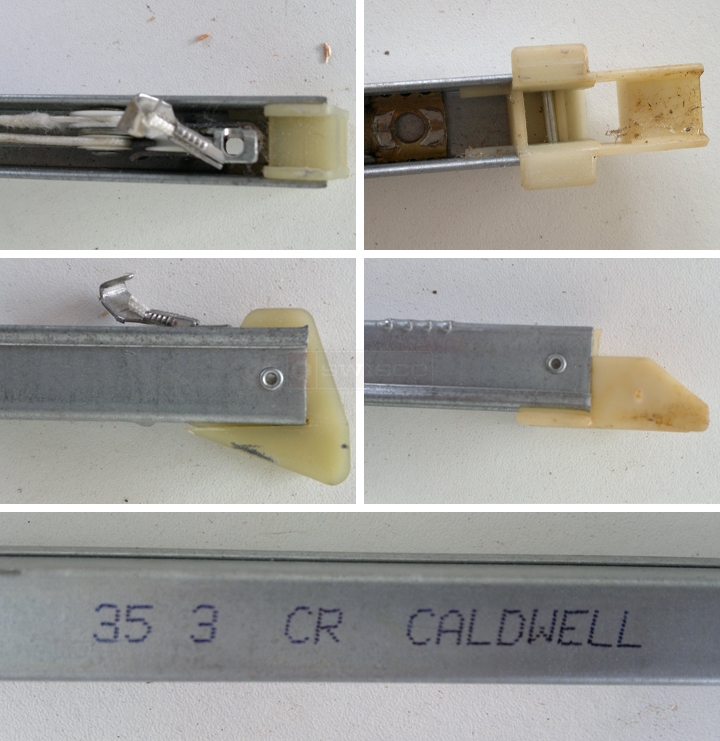

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
Good morning, and thanks for posting. Looks like your top attachment is winged, while your bottom is not. I can make out your top attachment is, but I need help figuring out what that bottom shoe is. Check out our 15-001 and 15-002 and tell me which is a closer match.
Comparison of 15-001 & 15-002
Comparison of 15-001 & 15-002
A home owner from Bonita Springs FL says:
Thank you for reply.
The bottom shoe is 15-001
Profile picture of Tom
Tom from SWISCO responded:
Thank you. The balance you need to order is our S395-36 with the 3530 option.
