jalousie/window crank operator

A quick learner from North Carolina says:
May 11, 2017
Hi Swisco,

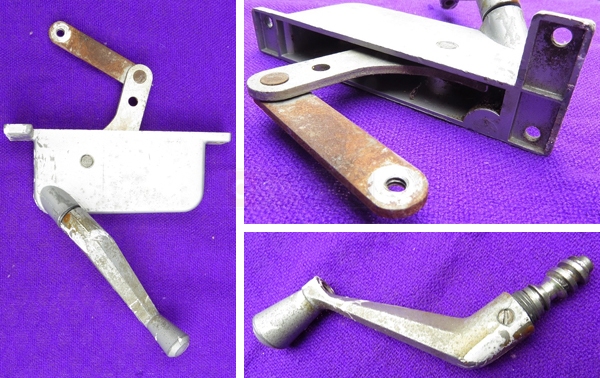

Here are photos of what I am looking to replace/repair. Product 39-194 is close; all measurements correspond EXCEPT for the 3/8" hole (mine is 3/16). And as I mentioned- when all folded in, on mine the arms fill the casing. Thanks for your help!
User submitted photos of a window operator.
Profile picture of Paul
Paul from SWISCO responded:
May 18, 2017
You might need the 39-025 operator. Check the arm attaching screw; does it look like yours with the 33-206 bushing?
A quick learner from Brevard, NC says:
May 26, 2017
Yes, the screw and the bushing look the same. However,on the 39-025 operator, there is a 2 1/4" measurement indicated. On mine, this is 2 3/8". On the 39-025 operator, the 1 3/16" measurement is also different from mine which is 1 3/8". The 5 1/4" measurements are the same. (I don't care if it is not exactly the same as long as it will work.)Will it work? Thank, Shana
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
May 30, 2017
Ah, I see what you mean. How about the 39-350 operator instead? It's dimensions are closer to what you need. See what you think.
A quick learner from brevard, nc says:
June 2, 2017
yes,the 39-350 is closer. I'll give that one a try;
can I return it if it doesn't fit?

Thanks
Shana
Profile picture of Tom
Tom from SWISCO responded:
June 5, 2017
You sure can. See our return policy for more information here.
