lock shoes for tilt window vinyl sash

A quick learner from Durham, nc says:
June 11, 2016
lock shoes for tilt window vinyl sash.channel rod has a 3 digit stamp - 28C. unit broke and needs to be replaced. also imstruction on how to install if needed, please

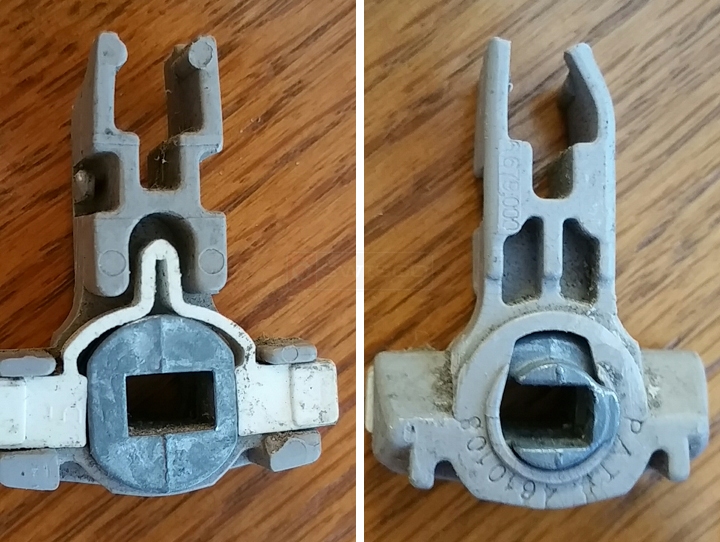

User submitted photos of a balance shoe.
Profile picture of Tom
Tom from SWISCO responded:
June 14, 2016

Hello. Thanks for posting. This part looks like our 15-195 shoe. Is this all that's broken on your balance? If so, you could just replace this and re-use the balance itself. These just pop right on the end of the metal channel.

If you do need an entirely new balance, see our S795-28. I believe this is what you have. Keep in mind that these install at the top using a screw clip, not a hook. If yours has a hook, let me know!
28" Series 795 Channel Balance
28" Series 795 Channel Balance
S795-28
$13.61
1-1/4" T-Lock Balance Shoe, Closed Cam
1-1/4" T-Lock Balance Shoe, Closed Cam
15-195
$1.92
How to Install a T-Lock Shoe on a Channel Balance
How to Install a T-Lock Shoe on a Channel Balance
VIDEO
WATCH >
How to Convert a Crossbow Balance to a Channel Balance
How to Convert a Crossbow Balance to a Channel Balance
VIDEO
WATCH >
How to install the 26-200 Screw Plug
How to install the 26-200 Screw Plug
VIDEO
WATCH >
Modifying the Series 795 Balance
Modifying the Series 795 Balance
GUIDE
READ >
Classifying Channel Balance Fittings
Classifying Channel Balance Fittings
GUIDE
READ >
