looking for Hope replacement crank and arm

A handy person from Bethesda, Maryland says:

June 22, 2015

Greetings: I need to replace four Hope window cranks and arms (the teeth are stripped). The original part number is R. H. 5564. The screw holes are 4 1/8" apart. So far, so good, right -- because that would seem to match up with your 39-354.

But there are two issues: First, the length of the arm is not 9" but 14". Second the disk at the end of the arm that slides into the bracket has a diameter of 10/16", not 9/16".

So I have three questions: 1) Do you have a replacement model with a 14" arm? 2) If I use the 9" arm, does it just mean that my window won't open as widely but will otherwise still be usable? 3) is the 1/16" difference in diameter a nonstarter?

For $25, I'm willing to experiment, but wanted to hear what you folks had to say first. Thanks very much.

Tom from SWISCO responded:

June 23, 2015

Could you show us a few pictures of the operator itself removed from the window? That will help us find a good match for you.

A quick learner from Bethesda, Maryland says:

June 23, 2015

for TOM:

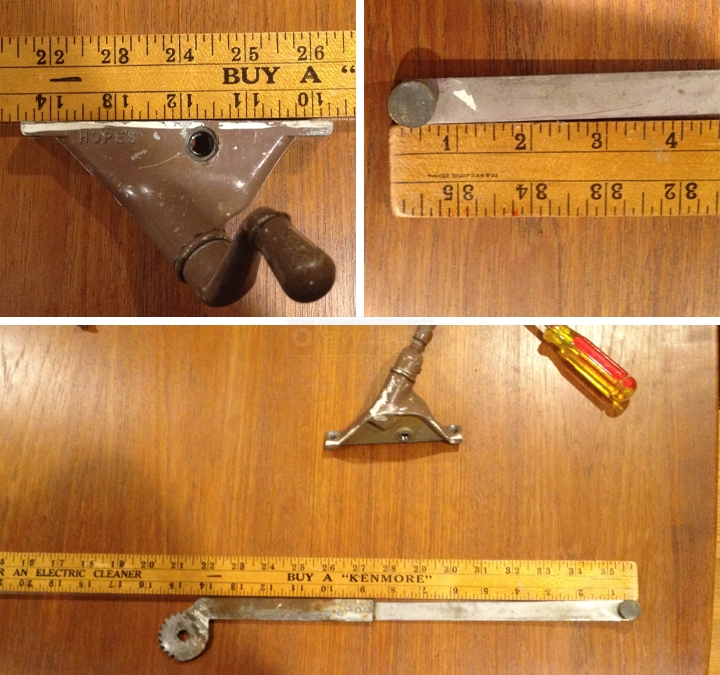

See pix of Hope's hardware that I'm trying to replace. thanks, jg

User submitted a photo of a window operator.

Dave Sr. from SWISCO responded:

June 26, 2015

Thank you! Yes, usually we recommend the newer 39-353 and 39-354 for this operator. Those long arms concern me though. It almost looks like they were altered at one point. I don't think it was made to look like that.

If you use our 39-353 and 39-354 still, the window might not open as far. If that is a problem then the only thing I can think of is seeing if you could alter those arms in the same way. I'm afraid we do not have a match for this exact operator, though. Sorry we can't offer a better solution! If you can contact the original installers of the window, they may be able to explain why they altered your operator arms to begin with.

Hope Operator, 4-1/8" HCs

39-353

$24.70

Hope Operator, 4-1/8" HCs

39-354

$24.70

SS 13-3/4" Channel Guide

39-504

$6.65
