measurement of 70-086 base

A handy person from Tampa Florida says:

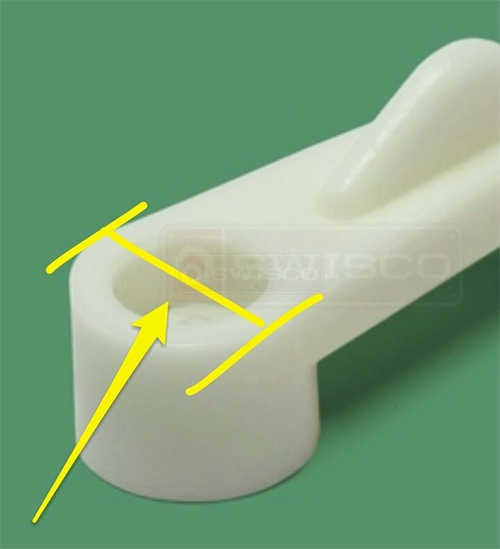

Is the measurement of the outside diameter of the portion that surrounds the screw? See picture

I want to slide something over this so I need the OD.

User submitted a photo of a screen clip.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting. The diameter of the 70-086 "barrel" is approximately 3/8". I hope this information helps.
A handy person from Bedford, Pa says:
What is the length of this latch. From the barrel to the tip of the thumb end.

Profile picture of Dave
Dave from SWISCO responded:
Hello! The total length from front to back is 13/16". The length from the inside edge of the barrel to the tip is 1/2". The height of the barrel is 1/4". The total height including the thumb end is 3/8". Let me know if that helps.
