mirror door roller

A quick learner from canada says:
hi,

here are two photos of the wheels I need.

O.D of roller is 1-1/2"
distance of the mounting holes, left-right 2-3/4", top-bottom 2-3/8 .

the mounting holes are positioned at half the thickness of the bracket and the slider is 1-3/4 wide and 1/2 thick.

I would be prepared to simply change the wheels however im a little concerned with the procedure to re assemble the rivets.

thanks in advance, Will.

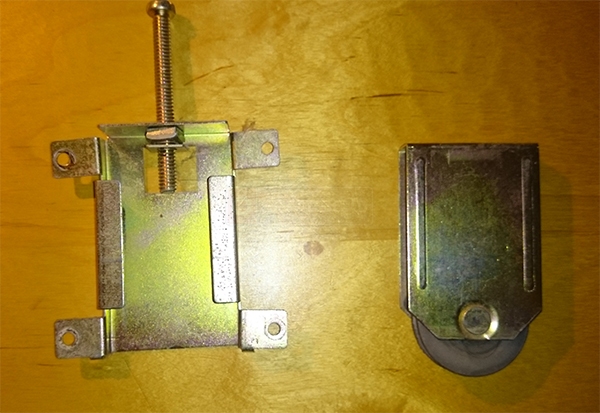

User submitted a photo of a mirror door roller.
Profile picture of Paul
Paul from SWISCO responded:
Hey, Will. See our 23-028 roller. This may be what you're looking for.
A quick learner says:
Thanks for the quick response.

these wheels are very close however my mounting holes ( the four tabs used to secure the bracket )are not flush , even with the rear surface, they are bent 1/4" because I only have 1/4" between my frame and the mirror.
I guess I could use some washers to move the bracket forward. or just use the wheels and keep my brackets.
I'll wait for a response before proceeding with my order, thank you.
Profile picture of Dave
Dave from SWISCO responded:
I took a look at our 23-028 roller housing just now. I'm not exactly sure where you are taking the off set measurements from, but the 23-028 housing body does have a slight off set on the tabs. If you need to I believe washers could be used.
