Need replacement hardware for my large Viking window

A home owner from Marin County, CA says:
need 2 balances, 1/2" x 24"

window is large Viking DH 45 x 53

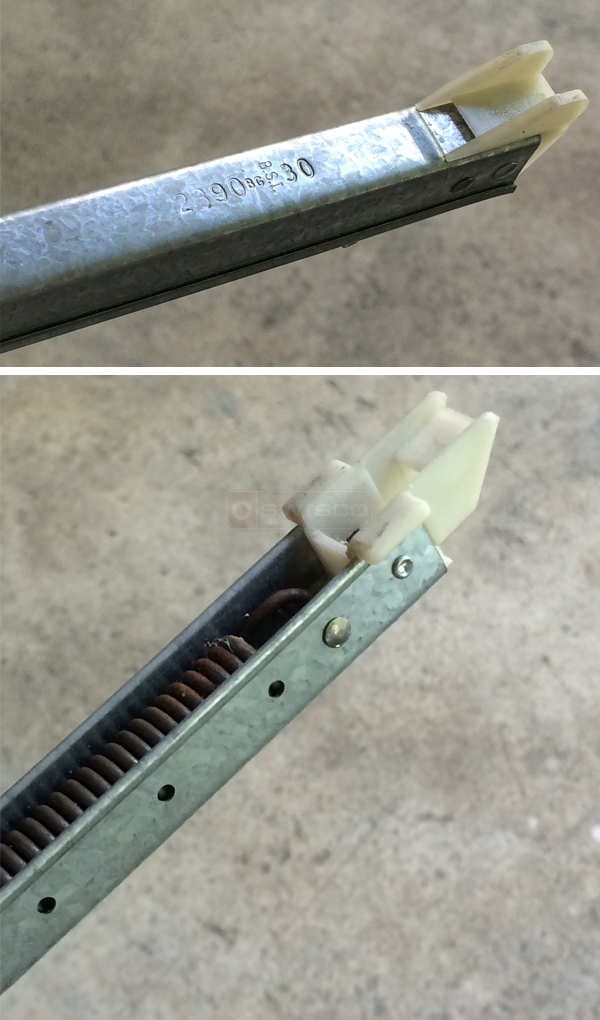

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
Good morning, and thanks for posting. Looks like your top attachment is winged, while your bottom is not. We need to figure out what that bottom shoe is so that I can recommend which replacement balance you need. Check out our 15-001 and 15-002 and tell me which is a closer match.
Comparison of <a href='http://www.swisco.com/Channel-Balance-Shoe/pd/Replacement-Sash-Support-Channel-Balance-Shoes/15-001'>15-001</a> & 15-002
I will also need to know the weight of your window sash. Thank you!
A home owner from Marin, CA says:
Tom,thanks for the reply. I have what looks to be the 1" 15-002 on the balances. Window sash weight is 28.5 lbs.

Also, I would like to get some other parts - in pics 1 & 2 are shots of what the window hooks onto the balances.

Also I would like to get 2 locks seen in the photo.

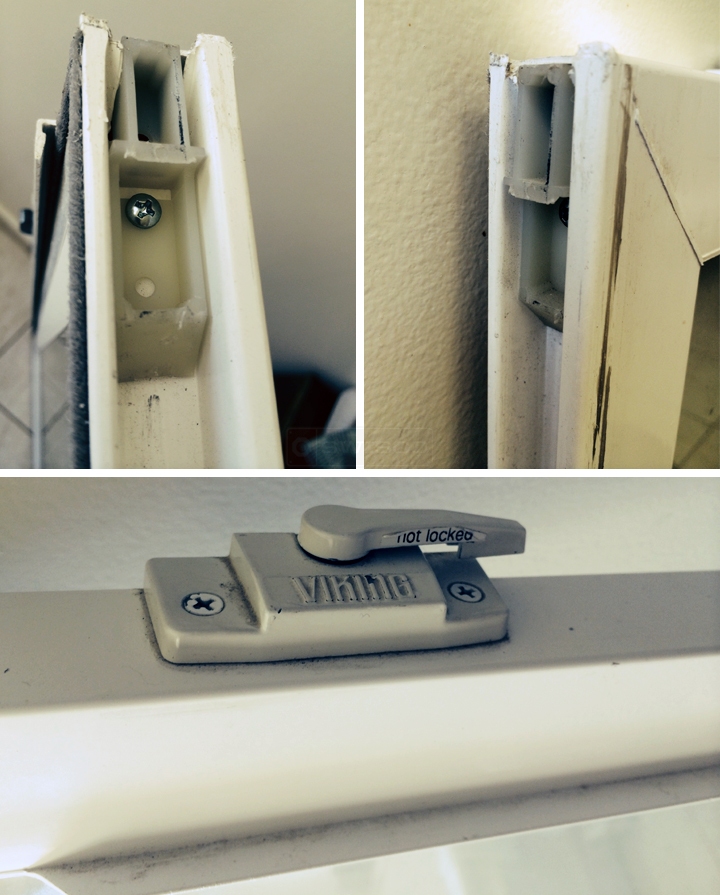

User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
Great. See our S395-24 with the option 2360 for the replacement balance you need.

As for the lock and top sash guide, please see our 90-274 and 18-171, respectively, and see if they are a good match.
