A home owner says:
Searching for replacement bulb weatherstripping which kinda meets your 58-182 spec, but the dimension of 5/16 is not enough. The one I have is at least 3/4", closer to 7/8". I do not see that same dimension on the detail sketch for 58-164 bulb weatherstripping. Can you provide the full length to me, simliar to what is shown on the 58-182 detail? (Mine is "T" 3/16 (.187_ with the circle of the bulb more like .375). Providing that additional detail measurement will help ensure I chose the correct part. (Mine are Simonton windows).

Also, is the 58-164 bulb soft or hard vinyl? My current piece has a foam liner (but not foam filled).

Thanks
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting. The 58-164 is hard vinyl. You can see its dimensions in the diagram below.

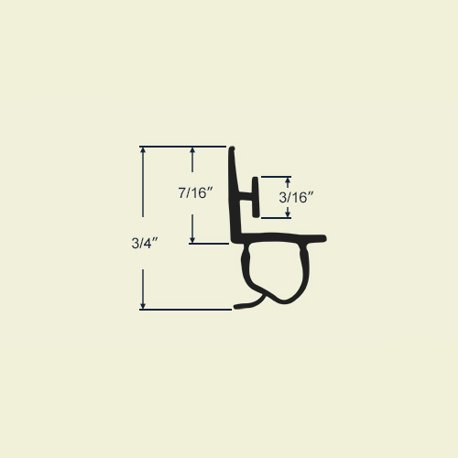

Profile view of 58-164
I'm not sure if we have anything that matches your dimensions exactly. At this point, it would be best if we see a few pictures of your existing weatherstripping. I will need to see its shape, so pictures of its cross section are essential.
A home owner from Rochester, NH says:
Attached is the picture of my window piece. It was a little hard to measure since the foam filled section has been scrunched. However, the "T" piece is .193 (probably equal to your 3/16) and the distance from the end of the T to the beginning of the fiam filled piece is 3/16, again similar to your picture 58-164. However the measurement from the very top to the very bottom (shown on 58-164 as 5/8) for me is closer to 3/4. Again, my piece is foam filled not hard. Any ideas?

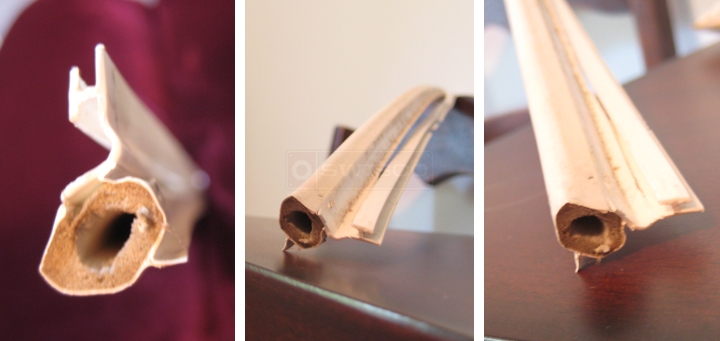

User submitted photos of weatherseal.
Profile picture of Tom
Tom from SWISCO responded:
Thank you for your patience in this matter. We are currently working on a new replacement for this foam seal. I will let you know as soon as we have it online and available for you to view.
Profile picture of Tom
Tom from SWISCO responded:
Thank you for waiting. Please see our new 58-183 and let me know if this would be a good replacement.
A home owner from Rochester, NH says:
Tom-this appears to be a perfect match. Thanks for following up with my issue. I will place my order and follow up after installation. Your customer service is OUTSTANDING!!
Profile picture of Tom
Tom from SWISCO responded:
Awesome! I'm so glad I was able to help. Let me know how it works out.
