need new channel Balance

A handy person from Maryland says:
Hello,

I need to order the correct channel balance.

This is 1/2 width, and 36 inch long.

on the balance it self it has the 34 4 K CALDWELL Mark.

Looks to be the 36" 380 Channel balance but i cant find the 344 option.

Please let me know what I should order, here are some pictures

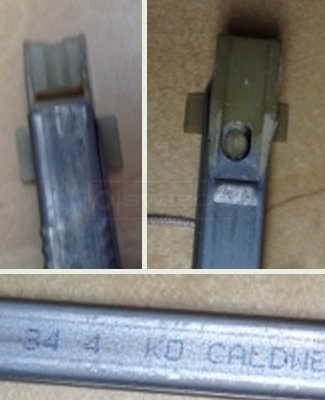

A customer submitted photo of channel balance attachments.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting! Before I can confirm what Series channel balance you have, I just need to know a bit more information about the bottom attachment. Please take a look at our 15-004 and 15-005 channel balance shoes, and note their depths. As you can see, they are 1-3/32" deep and 1" deep, respectively. Which one more closely matches your own bottom attachment?
A handy person from Maryland says:
Thank you for the quick reply.

They are narrow like the 15-005, as appears for the 380 series.


Profile picture of Tom
Tom from SWISCO responded:
Thank you! I agree. If you have the 15-005 shoe, then you likely have the Series 380 channel balance. The corresponding stamp for 34 4 would be 3440.
