need to replace window crank.

A home owner from hilton head says:
December 13, 2014
This is a Caradco window. The crank is positioned left of middle of the window and the locking mechanism on the right. The long arm of the mechanism measures 11 1/4". I can not open the window enough to measure the shorter piece. Can you help me to identify a replacement part for this? Thank you

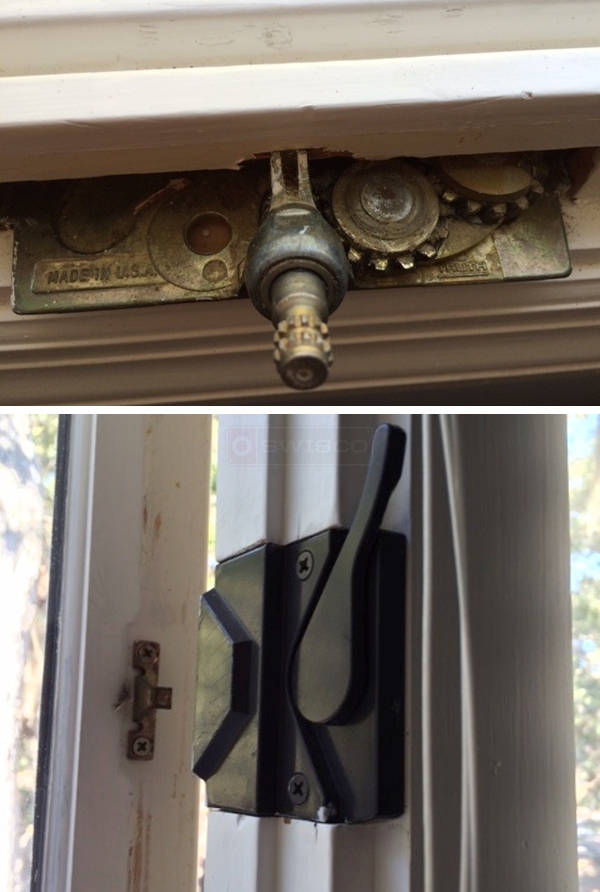

User submitted photos of window hardware.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
December 15, 2014
I can't say exactly what you need without knowing the size of the short arm. However, you can start by looking at our 39-156 and 39-155. Could these possibly match? The only way to know for sure is to find some way to remove your existing operator so that you can compare dimensions.
Caradco Window Crank, 9-1/2"
Caradco Window Crank, 9-1/2"
39-156
$29.85
