non-tilt window channel balance

A quick learner from Valencia, CA says:
I'd like to correctly identify the replacement window channel balance. Attached are pictures of the broken part I need to replace.

9/16 channel width, 30 inch length

It seems to me Series 380 or 385 should work, but would like to make sure.

Thanks.

Peter H.

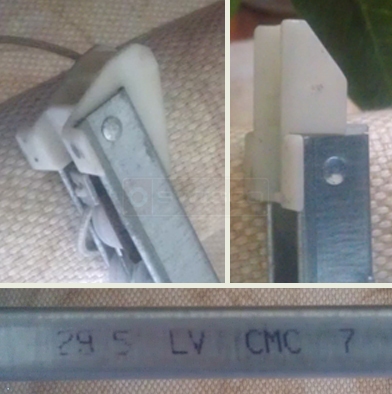

A customer submitted photo of channel balance attachments.
Profile picture of Paul
Paul from SWISCO responded:
Thanks for posting, Pete. Before I can offer an applicable replacement for this channel balance, I just need to know a bit more information about the bottom attachment. Please take a look at our 15-004 and 15-005 channel balance shoes, and note their depths. As you can see, they are 1-3/32" deep and 1" deep, respectively. Which one more closely matches your own bottom attachment?
A quick learner says:
The depth of the bottom attachment is 1". 15-005 is the matching shoe. Correct? Thus, I would need series 380, I guess.
Profile picture of Paul
Paul from SWISCO responded:
Thanks for getting back to us, Peter. Yes, with a 15-005 shoe, and a 19-005 top attachment, I would also go with the S380-30. You should also choose the 2950 stamp option, which matches your current balance's stamp.
A quick learner from Valencia, Ca says:
I bought and installed a pair of S380-30 with 2950 option. Now, it's definitely much easier to open and close the window. However, I observed that, oddly enough, slight lift of the sash opens the windos completely. As a result, I am unable to keep the window open to a desired amount or height. Basically, the spring in the balances seem too strong.
Profile picture of Paul
Paul from SWISCO responded:
Thanks for getting back to us! I'm sorry to hear that the spring is too strong. Could you please tell me the weight of your window sash?
