pella casement window cranks

A home owner from Lewes, DE says:

September 6, 2015

Our recently purchased home was built in 1971 and has the original Pella casement windows. The cranks all seem to be stripped and I can't seem to find working replacements. The part number on the crank is X-429.

Ideally we would be able to get "T" cranks so that we can close our plantation shutters without removing the shaft. Attached are two pix of the crank shaft and one of the part that the shaft fits into. Any ideas would be appreciated. Thanks

User submitted a photo of a window operator.

Tom from SWISCO responded:

September 9, 2015

Thanks for posting. You may need to replace the operators as a whole, if the spline is stripped. Could you open the window and show me a picture of its arms? There are a couple varieties of Pella operator and I want to confirm which you have.

A home owner from Lewes, DE says:

September 12, 2015

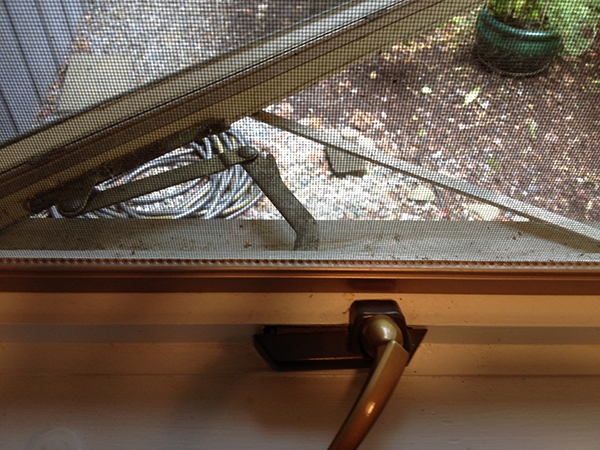

Thanks for your response to my inquiry. Attached are two pics of the arm for the windows in question.

Tom from SWISCO responded:

September 15, 2015

This picture is perfect, thanks! This looks like our 39-175 Pella casement window operator. The opposite side is our 39-176. Finally, for the "T" cranks, see our 39-227B. Let me know what you think of these suggestions.

A home owner from Lewes, DE says:

September 15, 2015

Thanks for your quick response. The shafts on our casement window operators look to be in good shape, i.e. not stripped, it's the inside of the crank handle that I think is worn/stripped. I'm guessing that we wouldn't necessarily need to replace the entire operator. It might make sense to order a batch of 39-227B 'T' crank handles as long as they'll fit properly.

How tough is it to replace the window operator if things head off in that direction?

Thanks again.

Tom from SWISCO responded:

September 15, 2015

Oh, I see. I'm sorry I misunderstood. Yes, if the handle hole is the only thing stripped, you should be able to get away by just replacing that.

As for replacing the entire operator, it's not too hard but it is a bit of a project. The trickiest part is removing the wood trim covering it. We have a video that shows how to do this; the operator featured in the video is different altogether, but the principle is the same.

T-Crank Handle, 3/8" Spline for Pella

39-227B

$4.21

Sash Crank Operator, Pella

39-175

$241.70

Sash Crank Operator, Pella

39-176

$241.70
