phillips window balance

A home owner from Springville ny says:
I am looking to replace the window balance on a phillips window my balance is 27 inches long and has 26 d stamped on the side can you tell me what a replacement would cost ? Thanks Bob

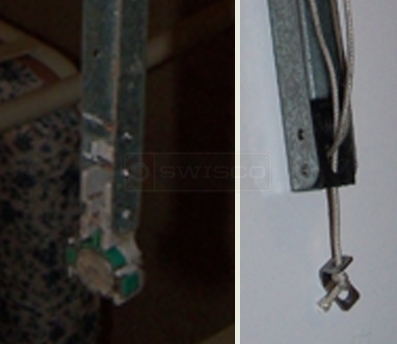

A customer submitted photo of channel balance attachments.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting, Bob! It looks like you have a balance similar to our Series 795 channel balance. Does that look about right?

Now, before you make a purchase, I just need you to confirm a few things for me, to make sure.

What is the total length of the metal channel? Make sure not to include the plastic shoe in your measurement. Based on your stamp, its length should be 26".

Also, what is the width of the shoe, ear-to-ear?
A home owner from springville says:
Tom you are correct the metal channel is 26 inches long the shoe appears to be about 1 1/16 wide. Thanks Bob
Profile picture of Tom
Tom from SWISCO responded:
Thanks for getting back to me, Bob! It sounds like you may have the smaller shoe, our 15-194. Does that look about right? If so, your balance will have to be custom made.

To begin, please take a look at this Custom Channel Balance Order Form that I have started for you, and fill out the rest of the information. One of our representatives will be in contact with you shortly thereafter.
