pivot bar for coronado series window

A quick learner from Poway CA says:
I have looked at your pivot bar selection and can't seem to identify this one. Its three inches long

Any help would be greatly appreciated

Thanks
Ray

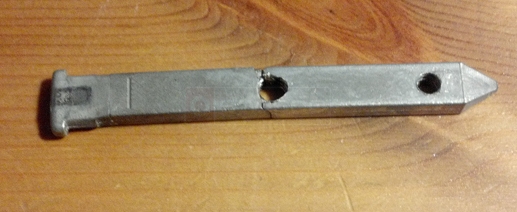

A customer submitted photo of a pivot bar.
Profile picture of Paul
Paul from SWISCO responded:
Thanks for the question, Ray. Hopefully we can help you out.

First, however, can you give me the distance between your installation hole centers and the head of the pivot bar? This will help us find a replacement.
A quick learner from Poway Ca says:
Paul,

Thank you for your help. the first hole is 1/2 inch from the point and the two holes ate 1 inch center to center. The fattest end is just about 1/4 inch .

Thanks
Ray
Profile picture of Paul
Paul from SWISCO responded:
I'm sorry, Ray, but that wasn't the measurement I needed. You'll need to measure from the tip of the pin that goes into the pivot shoe to the hole that the screw goes into. Please remeasure and let me know.

Here is an example of the measurements I will need.

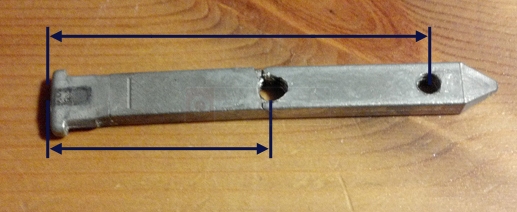

A SWISCO example of measurements needed.
A quick learner from poway ca says:
Ok
1 inch 3/4 from the end and 2 inch 3/4 from the end towards the tip

Thanks
Ray
Profile picture of Paul
Paul from SWISCO responded:
Thank you! Please take a look at our 26-241 Pivot Bar. Do you think this might work?
