pivot cam, 2-hole tilt stud for tilt-in window

A home owner from Houston says:
January 16, 2017
need to replace 2 tilt studs attached at each corner of the bottom end of a tilt-in window. It is L-shaped with the following dimension:

1 and 5/16"" long (1 and 1/8" long inside to the bottom L), 5/8" long on bottom L and 1/2" long upper bottom L, 1/" thick

The window has a logo M at the bottom corner of window glass.
Profile picture of Paul
Paul from SWISCO responded:
January 19, 2017
I'm not sure what it is you need. Can you show us pictures of the hardware in question? That will help us find what you need.
A home owner from Houston says:
January 19, 2017

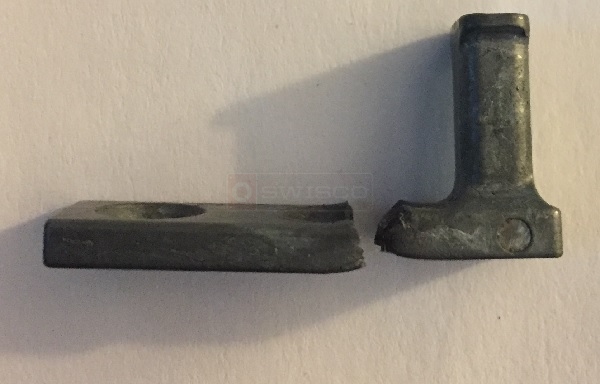

Attached are the photos of broken pieces.
pivot bar
Profile picture of Paul
Paul from SWISCO responded:
January 23, 2017
See our 26-402, this may be a possible replacement.
Side Mount Pivot Bar
Side Mount Pivot Bar
26-402
$1.38
