pivot shoe--picture 1 and 1,1

A handy person from 15 Glendale ave providence says:
i got the balance spring but the pivots right and left are broken
i need 3 of each

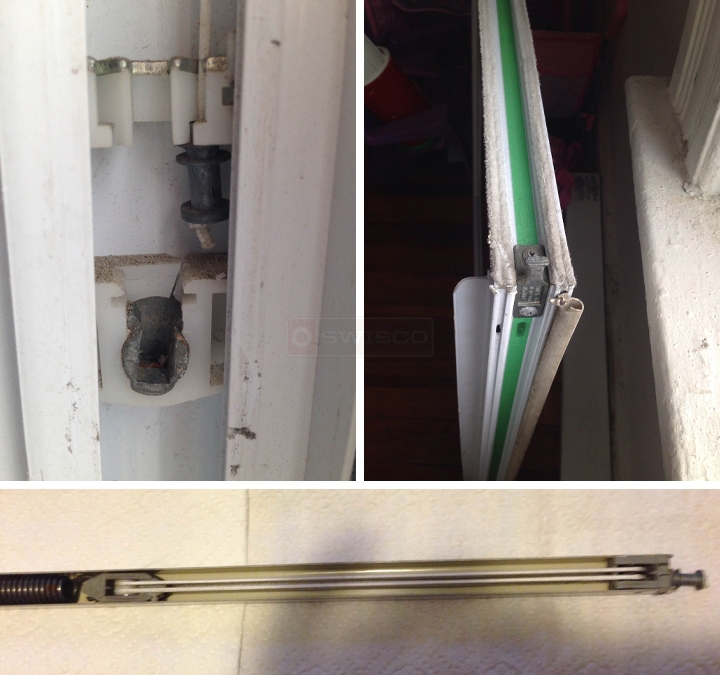

User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
Thank you for your patience in this matter. I believe the manufacturer of your balance system went out of business, unfortunately. I think you can use our 15-135 pivot shoe. The dimensions are 1-1/4" wide and 1/2" thick. The only concern I have is the metal cam on the pivot shoe. It will accept your pivot bar as long it is 5/16" wide or less.
