replace window channel balance

A home owner from ponte vedra beach fl says:
i need to replace a ( part no 28 3 Caldwell ) channel balance ,,, the metal part is 29 inches long .

Attached are 4 photos of the channel balance .. the metal part is 19 inches long I will need two, might as well do both sides .... if they work better, I will probably replace others before they break ., thank you
don

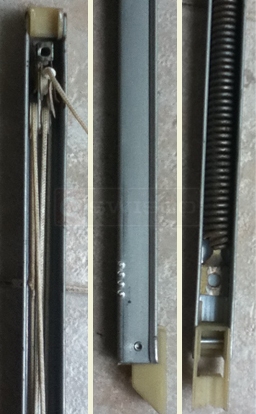

A user submited photo of window channel balance
Profile picture of Paul
Paul from SWISCO responded:
Thanks for posting on our Discussion Board, Don! Before I can recommend an applicable replacement channel balance, I just need a bit more information.

First, I'll have to figure out what bottom shoe your balance has. Please look at our 15-001 and 15-002 bottom shoe and note their depths. As you can see, they are 1-1/8" deep and 1" deep, respectively. Which one more closely resembles your own shoe? Once you tell us, we will be able to determine what Series your balance is.

Then, can you tell me what numbers are printed on your balance? This will help us determine your stamp option.
A home owner from ponte vedra beach fl says:
the numbers on the balance are
28 3 BN CALDWELL

attached is photo of the shoe

thank you
don
A customer submitted photo of channel balance attachments.
Profile picture of Paul
Paul from SWISCO responded:
Thanks for the image, Don. If I had to guess, I'd say your balance looks like it may be our S390-29 with a 2830 stamp option. However, I'd like you to confirm the depth of your bottom shoe, just to make sure! Is the depth 1", or 1-1/8"?
