replacement caoldwell channel balance

A quick learner from California says:
It's 1/2 inch wide and 33 inch long. It has "32 4 AQ" written on the back. Please recommend a replacement. Thanks

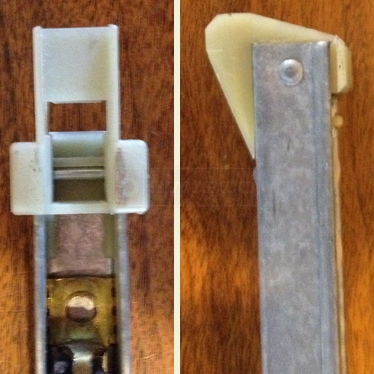

A customer submitted photo of channel balance attachments.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for the pictures! Before we can offer an applicable replacement for your channel balances, however, we just need to know a bit more information regarding your bottom shoe.

Please refer to the following chart and compare your shoe to the examples shown. Which one of these matches your hardware? This will help determine your balance Series. Thank you for your cooperation.
A SWISCO guide to identifying balance shoes.
A quick learner says:
The attachment has wings and its width is 1 inch. It appears to be attachment 15-005.

Thank you.
Profile picture of Tom
Tom from SWISCO responded:
Can you please confirm the width? Just by eyeballing it, and judging by the style, it seems to be closer to the 15-004. Of course, I can't be 100% sure. Keep in mind that the 3/32" difference, while seemingly insubstantial, is in fact vital to determining your best replacement. Thank you!
A quick learner says:
OK. On further measurements, it's definitely more than an inch and more like one and a sixteenth. Given I'm using a kid's ruler, that's about as definitive as I can be. Hope that helps. Thanks for your patience. Mike
Profile picture of Tom
Tom from SWISCO responded:
Thank you for elaborating. In that case, please take a look at our S385-33 with a 3240 stamp option.
