replacement parts needed for Caradco crank out windows

A home owner from Westerville Ohio says:
April 23, 2015
I've already ordered the handles for 2 windows without realizing I needed to replace the crank mechanism. Here are the pictures I took. Currently we're not living in the house. I didn't have pen & paper to write down numbers. Thought my picture would show it, but it didn't. I can get them later if you need it. The length of the longest arm was approx. 8".

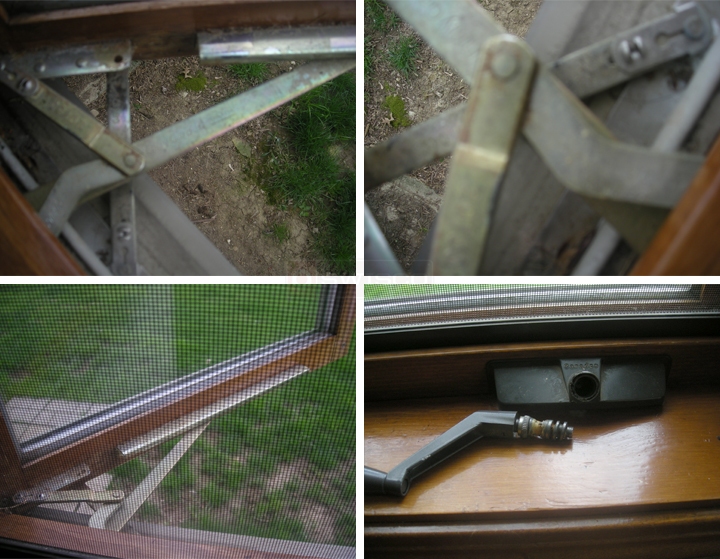

User submitted photos of a window operator.
Profile picture of Paul
Paul from SWISCO responded:
April 27, 2015
Hello! I would start by looking at our 39-155 and 39-156. Just make sure the dimensions match up, especially the length of the small link arm. It's important that yours are the same size.
Caradco Window Crank, 9-1/2"
Caradco Window Crank, 9-1/2"
39-155
$29.85
Caradco Window Crank, 9-1/2"
Caradco Window Crank, 9-1/2"
39-156
$29.85
Truth Hardware Operator Cover
Truth Hardware Operator Cover
39-107
$3.30
Crank Handle, 11/32"
Crank Handle, 11/32"
39-114L
$4.42
Truth Folding Crank Handle, 11/32"
Truth Folding Crank Handle, 11/32"
39-205
$11.70
