replacement pivot shoefor Atrium window

A home owner from wichita kansas says:

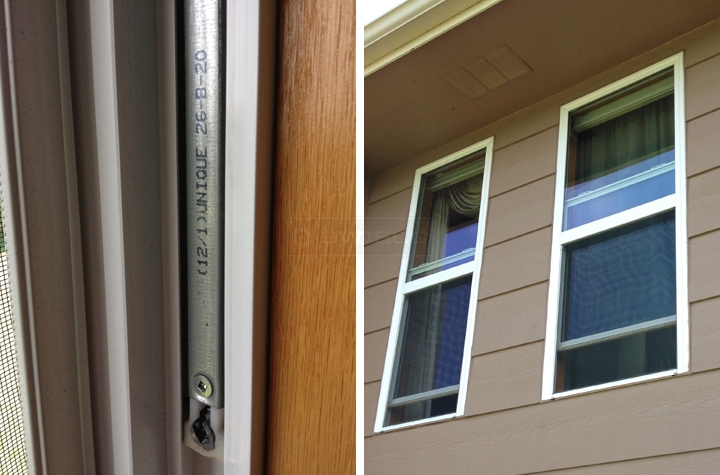

I am needing a pivot shoe for a Atrium Window, Single hung, 26 X 58 approx. The part is at the end of the rail, held on by a screw. The two pictures show the outside of the window and the inside rail.

These windows were installed at the time the house was built in2002. Contractor purchased these windows at Star Lumber in Wichita Kansas.

Jerry
User submitted photos of window hardware
Profile picture of Paul
Paul from SWISCO responded:
Good morning, Jerry! Thanks for posting. Before I can suggest anything, can you first tell me what the width of the bottom shoe is, ear to ear? If it's 15/16", then I think you might want to consider our Series 795 channel balance, along with our 15-194, which you can swap out with the Series 795's original shoe. What do you think?
A quick learner from Wichita Kansas says:
Hi Paul,
The width from ear to ear is 1 and 3/16 inch. I sent a few more pictures that might help in the search for the proper pivot shoe. Let me know if this helps.
Thanks, Jerry
User submitted photos of a pivot shoe.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for the extra pictures, Jerry. I think our Series 795 would be our closest possible match. Have you taken a look at it yet? Let me know if you think you can get it to work in your window.
