replacement window sash

A home owner from Florida says:
This particular window sash came from a larger window. I actually tossed out the window sash that I need the window measures 45.5 in. x 31 in. i am not sure what size and weight I need.

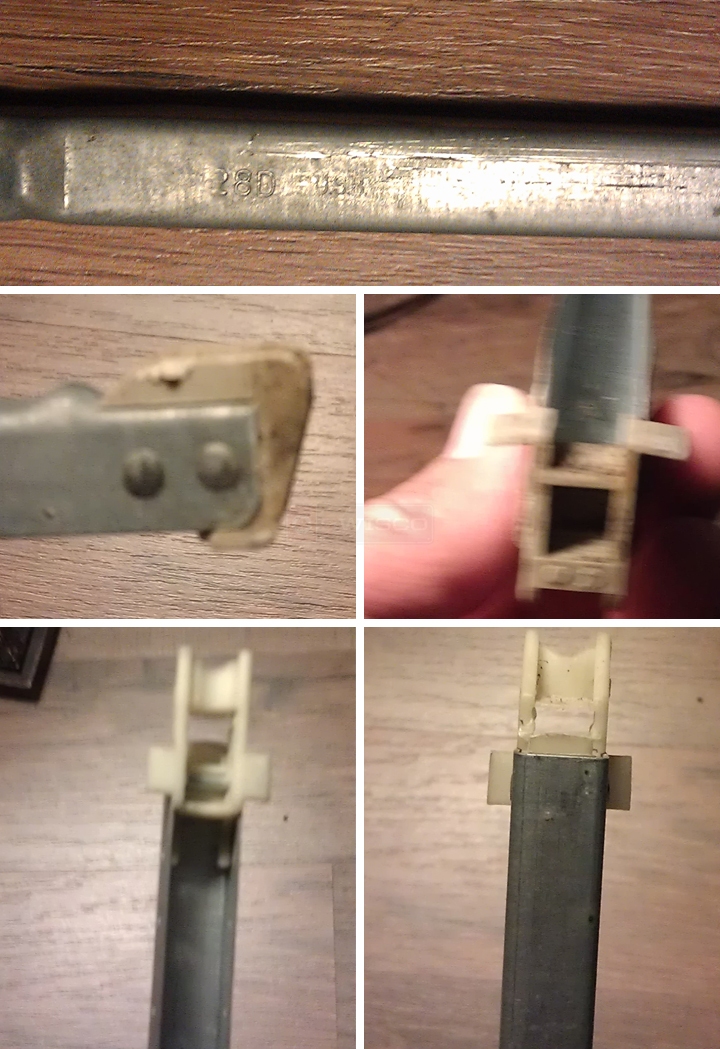

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
Thanks for posting. The part you're looking for is known as a balance, not a sash. The sash is the glass panel that the balance physically supports. This is an important distinction because I'll need you to get me some information regarding your sash before I can confirm a match.

First, to determine the length of the balance you need, I would like for you to measure the visible glass on your sash. Give me the width x height. I would also like you to remove your sash from the window and place it on a scale, then give me the weight you get. That will allow me to make the best recommendation.
A home owner from Florida says:
Sorry about giving you so much SASH TALK. However the window weighs 25lbs the exposed glass in the sash measures 43 7/8 wide measured from the glazing x 28 high measuring from glazing
A home owner from Florida says:
also in need of glazing strips

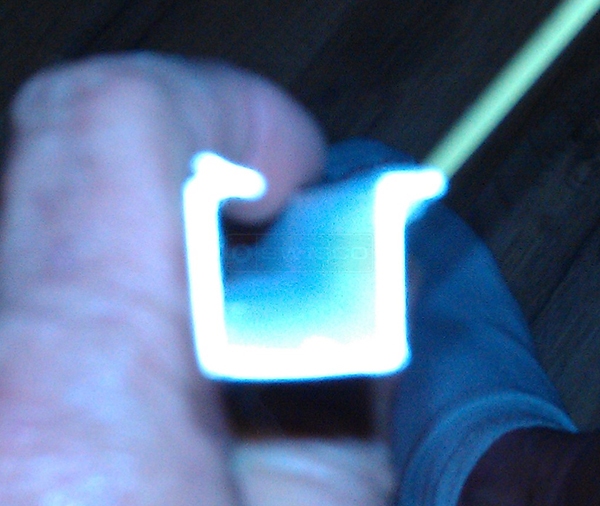

User submitted a photo of snap-in glazing.
A landlord from Orange City, Fl 32763 says:
I need instructions on how to take out the bottom sash to replace the channel balance.
Profile picture of Paul
Paul from SWISCO responded:
Thank you! I would recommend a 29" long balance with a 2840 option. As for the glazing, see our 55-194 and see how well the dimensions match up. Finally, see the video below for how to replace a channel balance.
