screen door roller

A contractor from El Dorado Hills says:
Have you ever seen this type of patio screen door roller? It looks like it attaches to the corner connector but it is different from the one in your video for the 95-020. The roller opening is 3.5 inches from the edge of the screen door. On the top one the wheel only came off easily. Visually the bottom one looks the same but it's giving me trouble any suggestions?

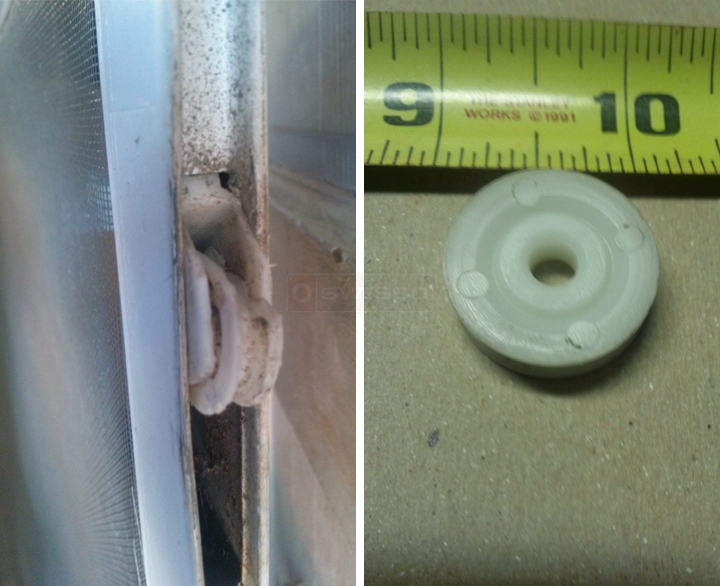

User submitted photos of a patio door roller.
A contractor from El Dorado Hills says:
There is no axle that goes through the center of this wheel, it just goes over two bumps, one on each side of the bracket.
Profile picture of Paul
Paul from SWISCO responded:
You might have something like our 84-137 corner roller assembly. The adjustment screw is at the end of the door. To remove a door from the track, you would need to loosen the top rollers by turning the screw counter clockwise, which will give you enough play to remove the door. The wheels are removable if you just want to put them in the old housing, or you could use our 84-017 wheels and disregard the screw and riv-nut. What do you think?
