screen frame corners

A handy person from Wake Forest NC says:
I'm making screens for windows at house. I need corners to fit screen frame I have left over from a previous project. See photo.

Thanks,
Steve

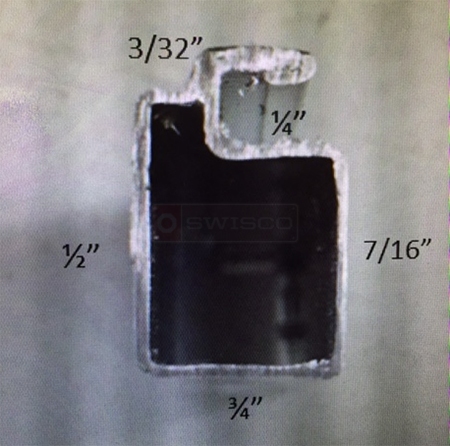

User submitted a photo of a screen frame.
Profile picture of Dave
Dave from SWISCO responded:
Hey, Steve. Take a look at our 95-229 corner and see if you think you could use that one.
A quick learner from Wake Forest says:
I made an error on one dimension. The bottom dimension should read 3/8" vs 3/4". Which corner do you suggest?
Profile picture of Paul
Paul from SWISCO responded:
Thank you for supplying the correction. Look at our 95-034 or 95-243 and see if either one would work for you.
A quick learner from wake forest says:
The 95-034 may work. The picture does not show dimensions of portion that would go inside screen frame. What are the dimensions?
Profile picture of Paul
Paul from SWISCO responded:
The thickness of the leg is 5/16", the short part of the leg is 1/2", and the long part of the leg is 9/16".
