selecting correct spiral window balance

A handy person from Palm Coast, FL says:
Tube length = 26"
Tube diameter = 3/8"
Window weight = 34 lbs (tilt in)
Tube tip color = white

You site didn't show a white tip option (only green and red), so I need to know which balances to order.

- Steve

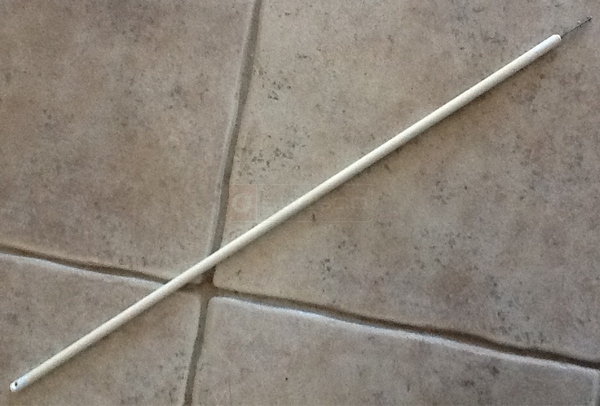

User submitted a photo of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
Hey, Steve. For a 34 pound sash, you will need a custom made balance with a Yellow Tip. Two 26" long Series 900 spiral balances with Yellow Tips can hold a window sash weight of 24 through 34 pounds.

Check out this custom spiral balance request form that I've started for you based on your specifications and fill out the rest of the information. One of our representatives will get back to you shortly thereafter with a price quote and an item to add to your cart.
