sliding glass door lock handle

A quick learner from florida says:
The lock handle on my patio sliding glass door has broken off. The lock still works if I insert the metal shaft into the mechanism and use a pair of pliers to operate it. I have found turning lever part #82-106 but the shape and size is slightly different. Will this fit my door lock or is there a different part that I need. I have attached two photos.

Thanks.

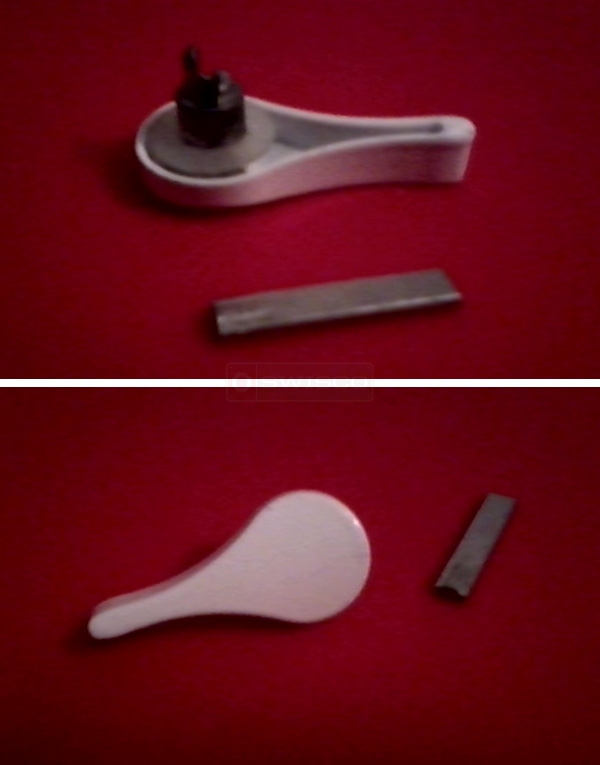

User submitted photos of sliding door hardware.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting! How does the size of the 82-106 differ from your own hardware? The most important part of the 82-106 is the tail, which has a length of 13/16" and a width of 7/32". What is yours?
A quick learner from florida says:
The width is 7/32th. The length is difficult to dtermine because the parts are separated. If it were inserted all the way, it may be correct. Do you not carry the specific part that's on my door?
Profile picture of Tom
Tom from SWISCO responded:
Unfortunately, we do not have a turning lever in this exact style. I think that our 82-106 is the closest match we can come up with. Could you get it to work?
A quick learner from florida says:
Thanks. I'll give it a try.
