sliding glass door rolled ID

A handy person from Kingston, Tn says:
October 19, 2012
Please help me identify and acquire 2 of these sliding glass door roller assys. i have attached a picture and a sketch. Please don't laugh too hard at the sketch. thanksalot rlpope

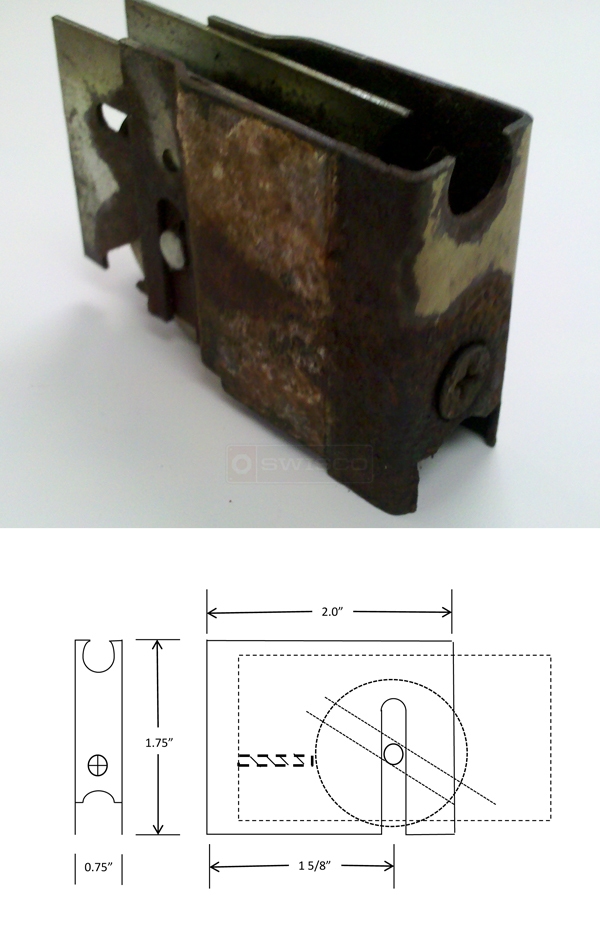

User submitted a photo and diagram of a sliding door roller.
Profile picture of Casey
Casey from SWISCO responded:
October 22, 2012
Good afternoon, and thanks for posting! Please take a look at our 81-041 Sliding Glass Door Roller and compare it to your own hardware. Could you use this as a replacement?
PS: that sketch was great!
A quick learner says:
October 23, 2012
I'm pretty sure that the 81-041 will not replace my roller assy. I've modified my sketch to show the geometry along the bottom of the piece. The dimensions in red appear to me to be critical in positioning the roller in the door frame. Do you have another suggestion? Thanksalot

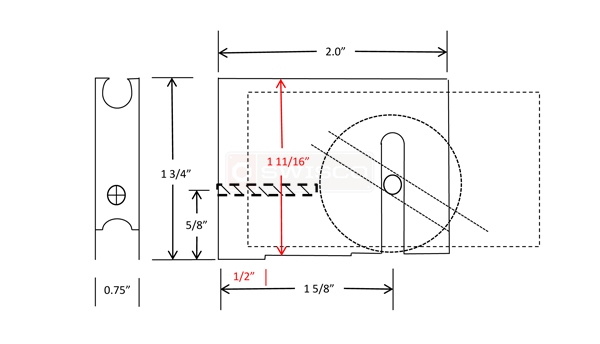

User submitted a diagram of a glass door roller.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
October 26, 2012
Thanks for getting back to us. I actually agree with Donna. Our 81-041 appears to be the closest match. While the dimensions are a bit different, the inside is adjustable, and can go up and down. It could make up for the difference.
Sliding Glass Door Roller, 1-1/4" dia Steel Concave BB
Sliding Glass Door Roller, 1-1/4" dia Steel Concave BB
81-041
$11.72
