snap in rail glide

A quick learner from Chatham ma says:
April 13, 2014
Need the snap in upper rail glide part that snaps into upper screen patio door screen edge. Not the roller, just the part with the adjustable rail glide. For French sliding patio door. Looks a lot like the lower snap in but without the roller and instead of a roller i it is a rail grabber that has an adjustable long plastic screw. There are two of these on upper edge of screen. All plastic part with long adjustable screw. Which makes the glide raise and lower.

Profile picture of Tom
Tom from SWISCO responded:
April 14, 2014
Can you take a few pictures of the part in question? I do not know what you have exactly, but pictures would help us find the best possible match. Thanks!
A home owner from jacksonville fla says:
April 14, 2014
sorry- newbee- just posted the photos on this forum a few minutes ago - they are attached to series 600 spiral springs thanx!

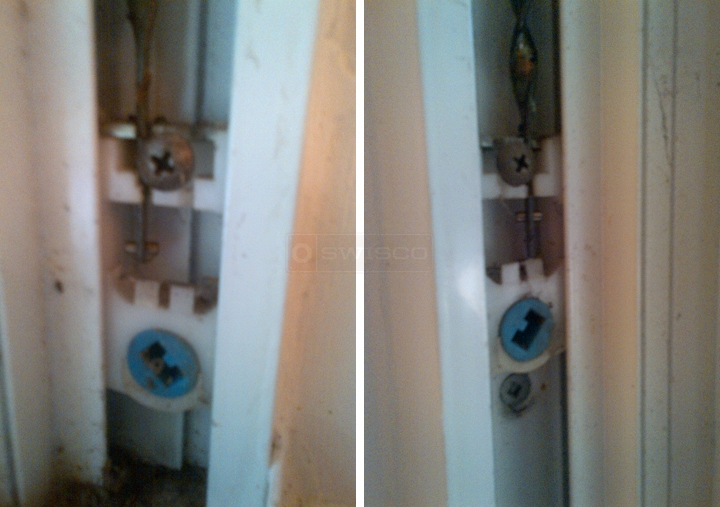

User submitted photos of a window balance shoe.
A home owner from jacksonville fla says:
April 15, 2014
I have 600 series spiral springs but need to replace the pictured part please

thanx
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
April 15, 2014
Thank you. This looks like a 15-015 tilt shoe, but without detailed dimensions it's hard to say. Carefully compare the specs we show for that part to your own and see how well they match up.
A home owner from jacksonville fla says:
April 15, 2014
thank you Dave- that is what I need. I have ordered the 75-006 tool and have 16 windows to look at. Then I can order all my stuff at one time! thank you for your expertise
