spiral balance for better bilt tilt window needed

A quick learner from Orange, CA says:
November 11, 2016
Please advise which part no to order for replacing this balance. the tip is red. the length is 24". diameter 3/8"

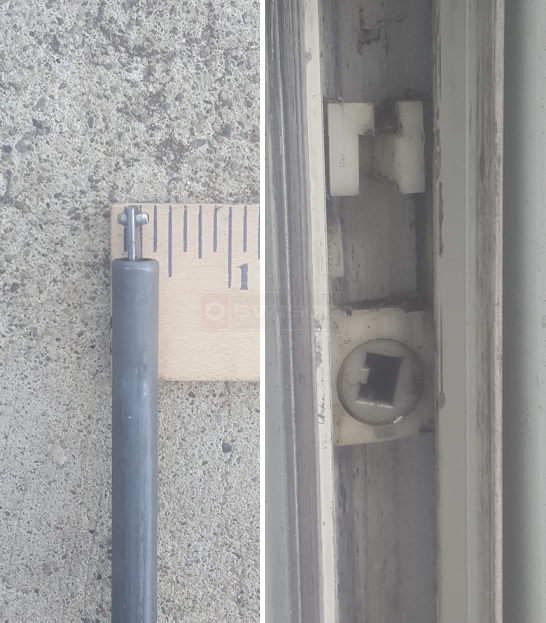

User submitted image of their window hardware.
Profile picture of Paul
Paul from SWISCO responded:
November 11, 2016
Hello! Based on your photo, the pivot shoe looks like our 15-045. Please compare it to what you have now to confirm. The 3/8" tilt balance could be our S900-24. Your spiral has been pushed in not showing the other pin, so just double check to make sure this matches up.
Pivot Shoe, 3/8" Thick
Pivot Shoe, 3/8" Thick
15-045
$1.85
24" Series 900 Spiral Balance
24" Series 900 Spiral Balance
S900-24
$8.55
Spiral Balance Charging Tool for Tilt Windows
Spiral Balance Charging Tool for Tilt Windows
75-006
$9.97
