spiral tilt spring balance

A home owner from 17603 says:
I am in need of blue-tip, 3/8" diameter, 18 inch tube length, spiral spring balance


Any help offered would be appreciated. Thank you in advance

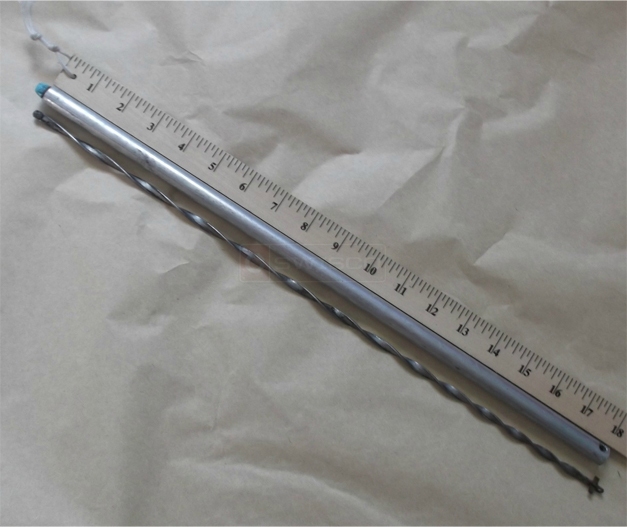

User submitted image of their window hardware.
A home owner from 17603 says:
I am noticing that some of the broken spirals have 2 shoe pins and others have only 1 pin. What may be the reason?

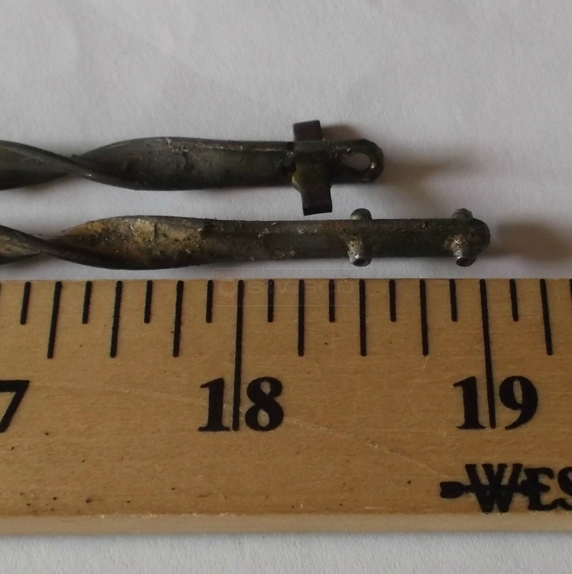

User submitted image of their window hardware.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting! This is a bit odd. You mention that your balance is for a tilt window, but your first picture shows a spiral balance specifically designed for non-tilt windows. Then your second picture shows the same non-tilt type spiral balance (top) and then a standard tilt type spiral balance (bottom).

I can't be sure, but I'd wager that your tilt windows were repaired at some point with incorrectly chosen non-tilt spiral balances. Assuming these are, indeed, tilt windows, and that keeping in mind that the outer metal tube is 3/8" in diameter, then I would recommend our Series 900 spiral balance. I would double check the outer diameter, though, just in case. If it's 9/16" or 5/8", go with our Series 600 instead.
