tilt sash window

A landlord from Baltimore, MD says:
February 2, 2017
Need new pivot pins, sash coils, & pivot lock shoes. For plain white double hung windows, about 10 years old.

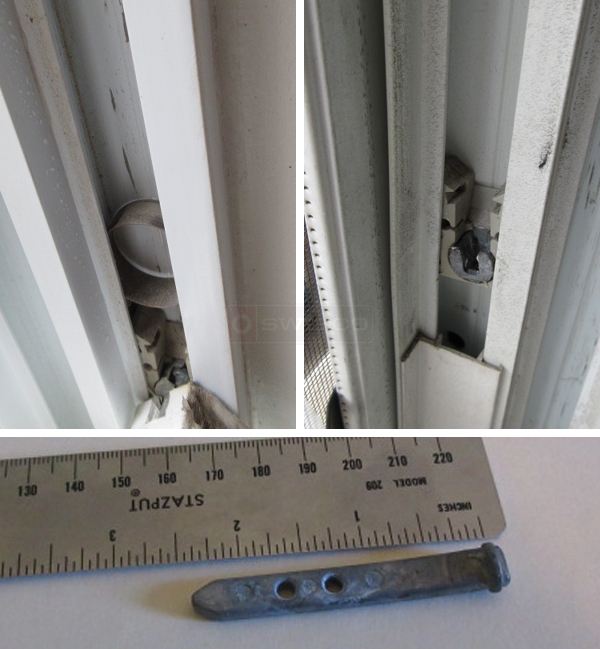

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
February 9, 2017
Take a look at our 26-352 pivot bar. This appears to match what you have. The pivot shoe resembles our 15-175, and the spring resembles our Series 152 balance. You will need the number stamped on the old spring near the screw when ordering new ones. Look over this hardware and see what you think.
Pivot True Pivot Bar
Pivot True Pivot Bar
26-352
$1.90
Removing Rusted Pivot Bars
Removing Rusted Pivot Bars
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
