tilt window channel replacement

A home owner from summerfield florida says:
I have numerous tilt windows and all have channel balances that will need replacement, I have been unable to identify a match on your parts page and hope you can help.

The channel balance from bottom - up are as follows:

there is a slide that the window fits in like the one in #795 however there is a clip (like series 765 bottom) on the base of the channel that fits into the slide. The top of the channel is plain and has nothing there.

I've added photos so hope you can guide me in the right direction. I have a couple different sizes, the 4 I need now are marked 2940 and the channel is 30" long. The majority of the others are 2330 and are 24" long. Thanks

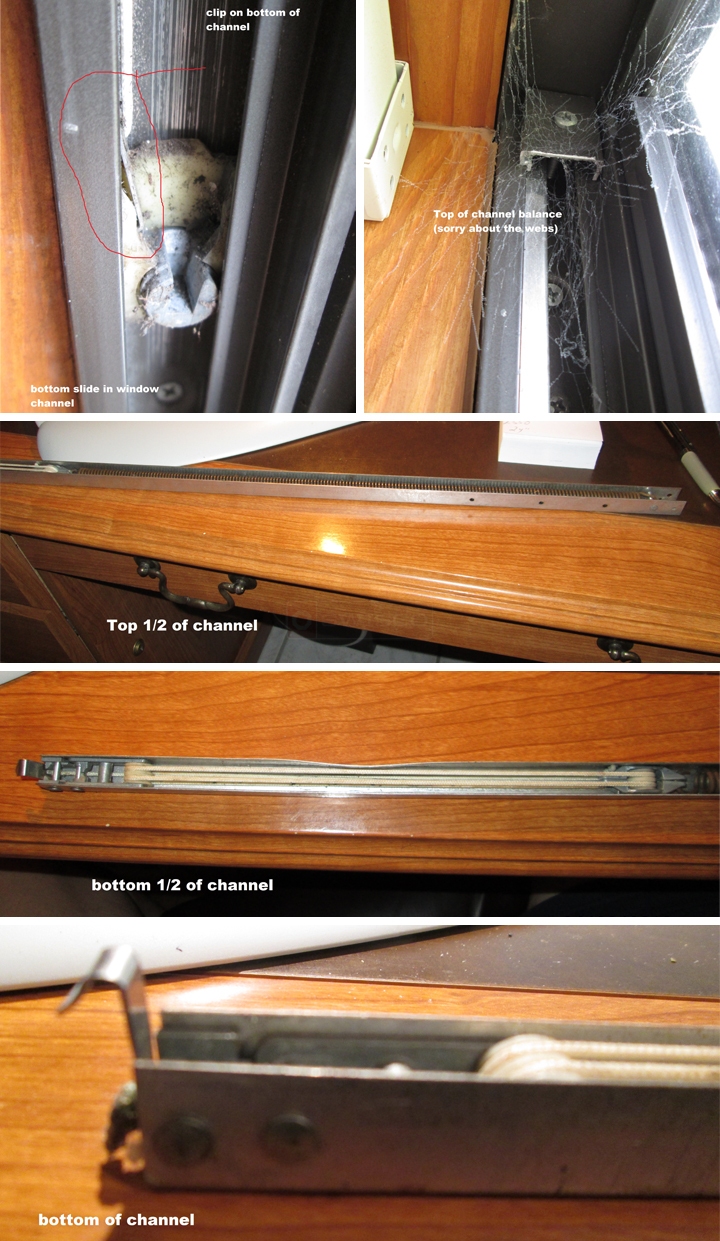

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
Thank you for posting! I think these balances will have to be custom made, as they are not a standard Series. I have made two custom ordering forms for you. The first is for the 30" Channel Balance, and the second is for the 24" Channel Balance. Review the information and, if it looks good, fill out and submit the rest of the information. One of our representatives will get in touch with you shortly thereafter with a price quote.

As for the shoe, check out our 15-105 and see if it's a match.
A home owner from summerfield florida says:
Thanks for the fast reply, I have found a supplier for them but have ordered the window shoe 15-105. Just for FYI these are for Kinko windows from 1995. Thanks
