Dave Sr. from SWISCO responded:
July 1, 2010

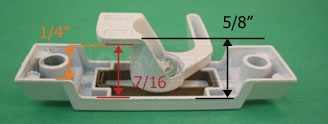

I added this edited image with measurements. To clarify: the orange line is measured from the screw mounts to the BOTTOM of the latch, the red line is from the base to the BOTTOM of the latch, and the black line is measured from the base to the TOP of the latch. I hope this helps.
|
