top sash guides with four wings

A quick learner says:
Please help me find this top sash guide that has two tabs on the bottom. I have attached a picture.

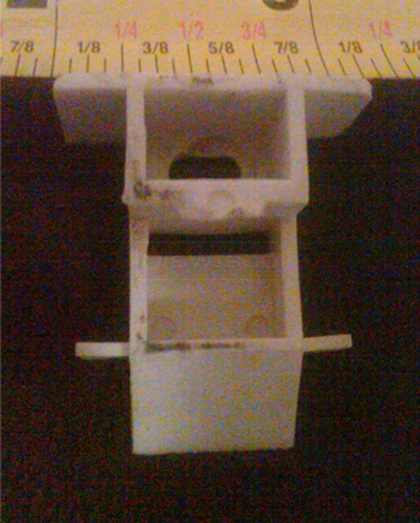

User submitted a photo of a sash guide.
Profile picture of Paul
Paul from SWISCO responded:
Thanks for posting, and for the pictures! Could you give me a few more detailed dimensions for this top sash guide? Take a look at our 18-009 as an example of what dimensions we will need.

I've seen this hardware with the bottom wings before, and I do not think they are important. As long as the top sash guide can fit securely in the window, that's all the matters. Just let me know what its dimensions are and we can work from there.
A handy person from Elephant Butte NM says:

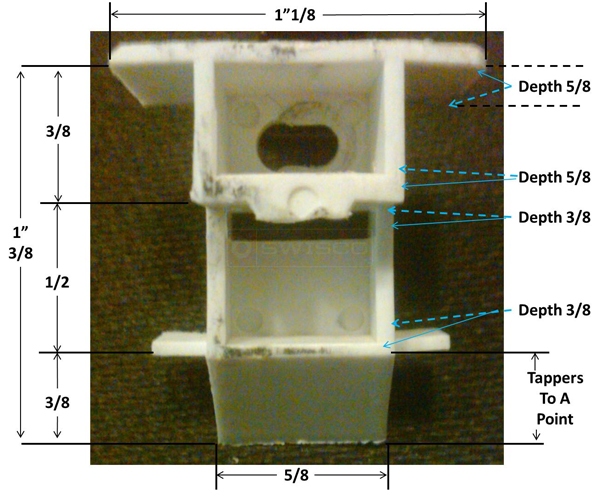

Added new photo with measurements right side shows depth, left side shows length, and top/bottom show width.
User submitted a photo of a sash guide.
Profile picture of Paul
Paul from SWISCO responded:
Great! Thanks for getting back to us. Coincidentally enough, our 18-009 looks like a pretty close match. What do you think?
A handy person from Elephant Butte NM says:
Looks like it will have to be....Thank you for your assistance.
