top threaded pivot bolt with cap

A quick learner says:
Need to find a top threaded pivot bolt

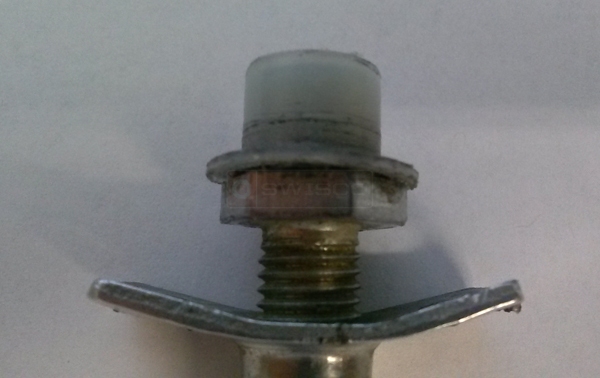

User submitted a photo of a pivot pin.

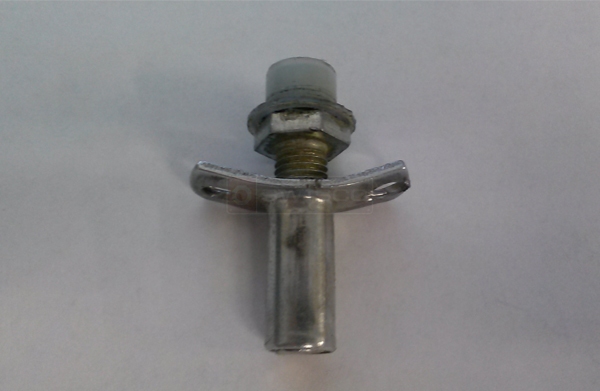

User submitted a photo of a pivot pin.
Profile picture of Paul
Paul from SWISCO responded:
Ah, I've had a customer come in one day with this same thing. What we did is recommend that they take the 23-126 pivot and use the 21-100 as a cap. Carefully compare this hardware to your own and let me know if that could work for you, as well.
A quick learner says:
instead of using the spring loaded bolt would the pin cap fit on the threaded bolt # 23-127
Profile picture of Paul
Paul from SWISCO responded:
Yes, you could also use the 23-127.
